Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

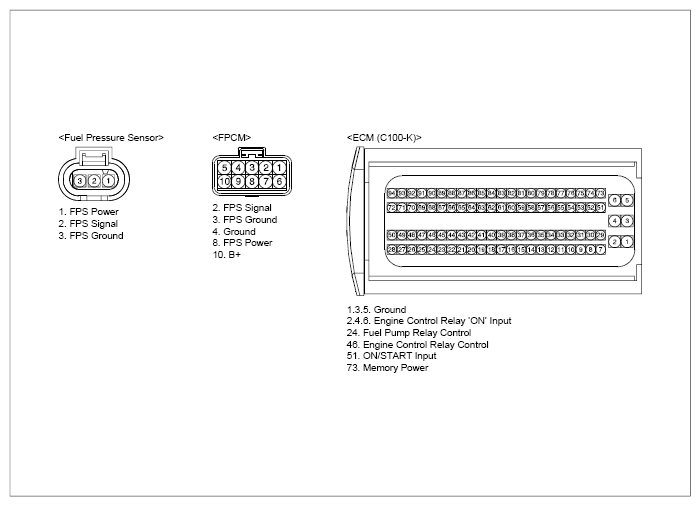

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	FPCM connector	10 (power)	Chassis ground	-	Approx. 11V
	FPCM connector	4 (ground)	Chassis ground	-	Approx. 0V

Good

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
