Circuit Inspection

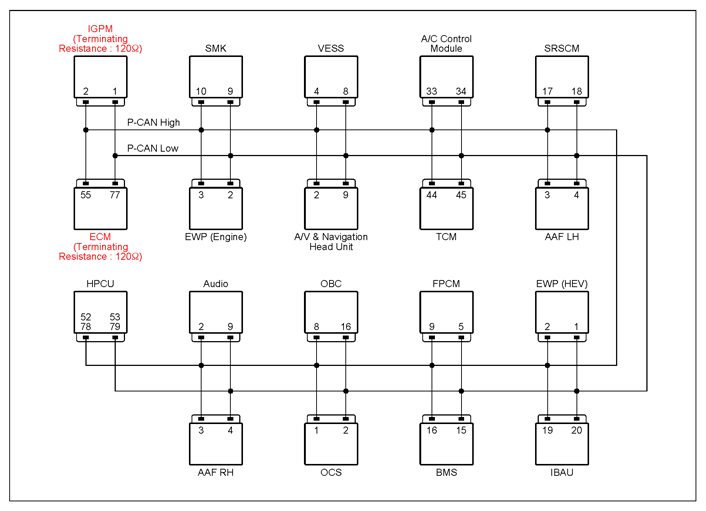

G13355496

Courtesy of KIA MOTORS AMERICA, INC.

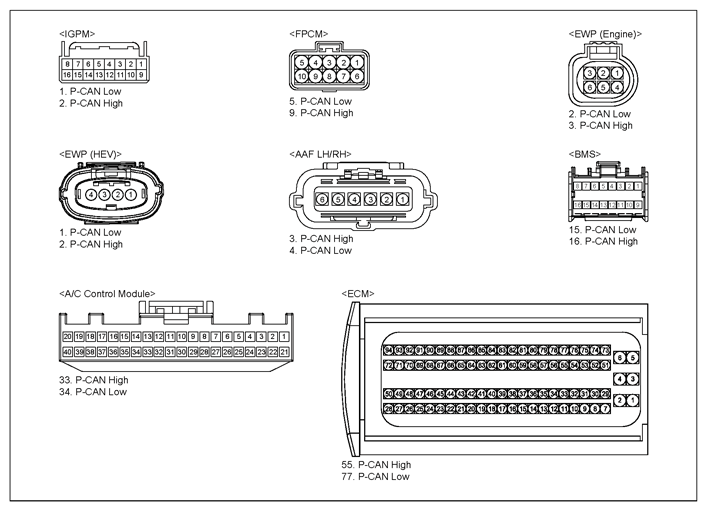

G13355497

Courtesy of KIA MOTORS AMERICA, INC.

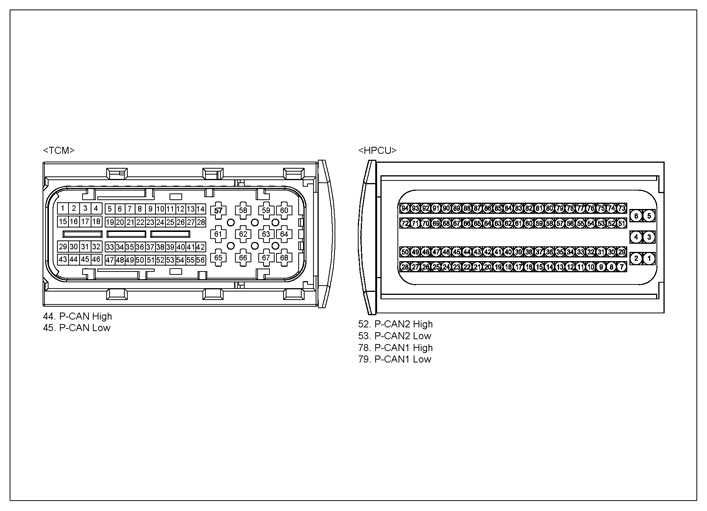

G13355498

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the auxiliary battery (-) terminal. Disconnect the electrical connector(s) from the concerned component.	FPCM connector	9 (P-CAN high)	FPCM connector	5 (P-CAN low)	Approx. 60Ω
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	FPCM connector	10 (fuel pump +)	Chassis ground	-	11V
	FPCM connector	4 (ground)	Chassis ground	-	Approx. 0V
	FPCM connector	9 (P-CAN high)	Chassis ground	-	Fig.1
	FPCM connector	5 (P-CAN low)	Chassis ground	-	Fig.1

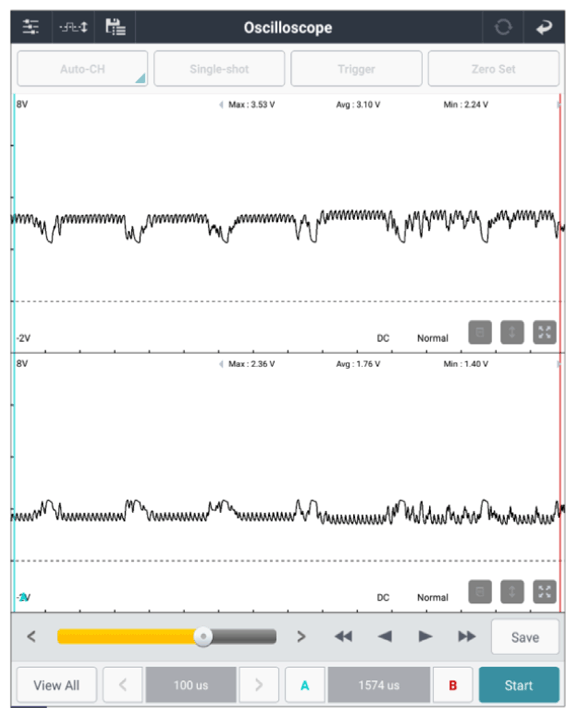

G13355499

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
