HCU Variant Coding

  1. Turn the ignition switch OFF.
  2. Connect the KDS to Data Link Connector (DLC).

    Turn the ignition switch ON.

  3. Select "Vehicle, Model year, Engine, System".
  4. Select "Vehicle S/W Management".

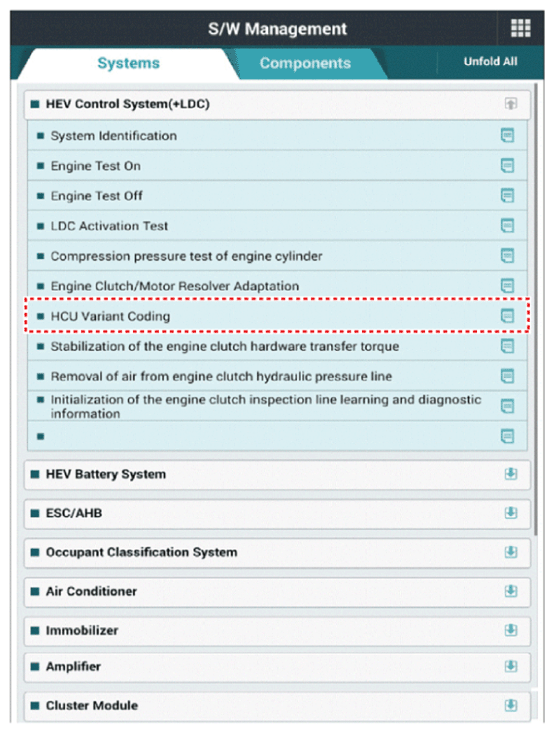

  5. Select "HCU Variant Coding".
    G13352025Courtesy of KIA MOTORS AMERICA, INC.
