Repair Procedures: Inspection: Buzzer

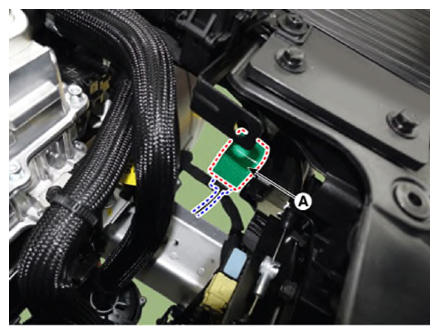

  1. After removing the buzzer (A), disconnect the connector from the buzzer.
    G13351387Courtesy of KIA MOTORS AMERICA, INC.
  2. Test the buzzer by connecting battery power to the terminal 2 and ground the terminal 1.
