Tailgate Lid Handle

  1. Remove the tailgate latch.

    (Refer to Body - "TAILGATE LATCH ")

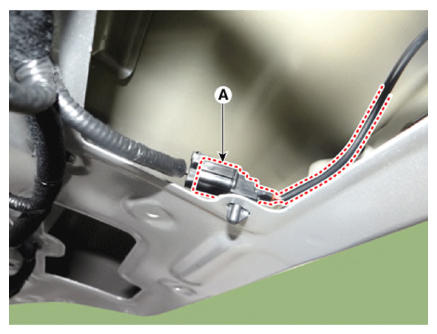

  2. Disconnect the connector (A) and remove the wiring fixing clip.
    G13351385Courtesy of KIA MOTORS AMERICA, INC.

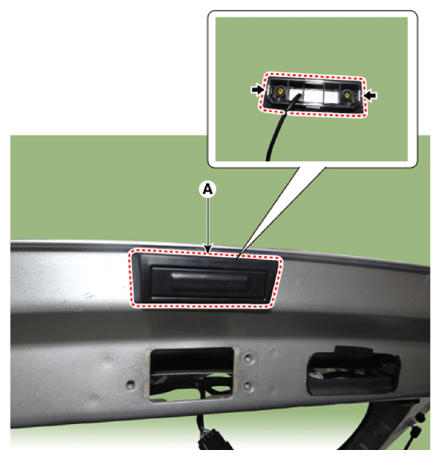

  3. Remove the tailgate lid handle (A) after pushing the hooks.
    G13351386Courtesy of KIA MOTORS AMERICA, INC.
