Components And Components Location: Components

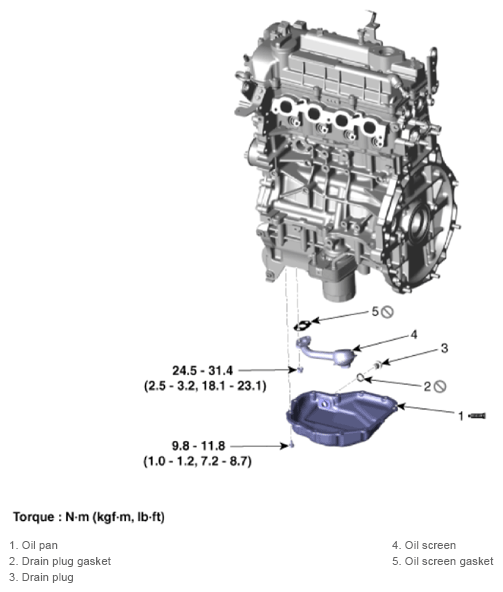

Fig 1: Oil Pan Components With Torque Specification
G13348445Courtesy of KIA MOTORS AMERICA, INC.
