Engine And Transaxle Assembly (R & I) (PHEV)
›
Engine Mounting
›
Components And Components Location
›
Components
Components And Components Location: Components

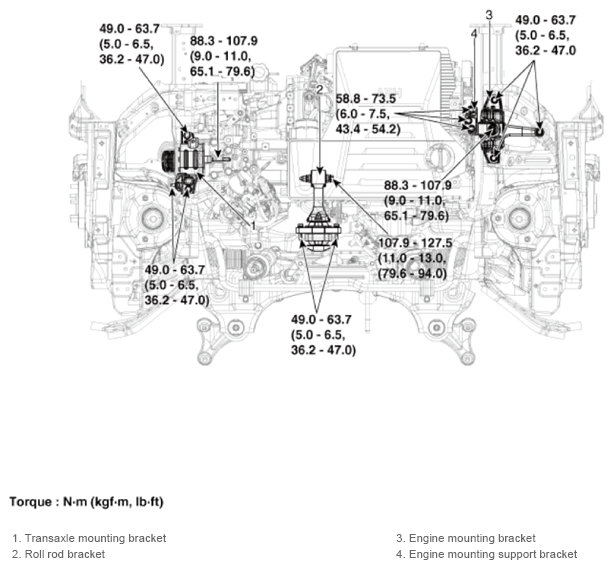

Fig 1: Engine Mounting Components With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
