Double Clutch Transmission Control System (PHEV)
›
Clutch Actuator Assembly
›
Components & Components Location
›
Components
Components & Components Location: Components

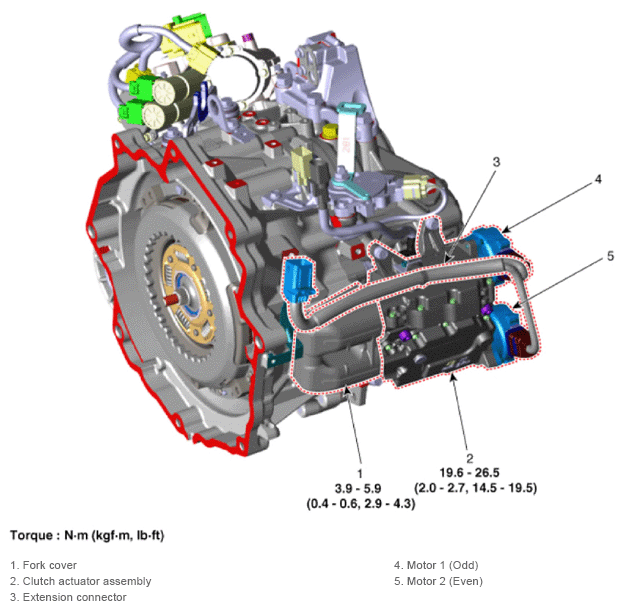

Fig 1: Clutch Actuator Assembly Components With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
