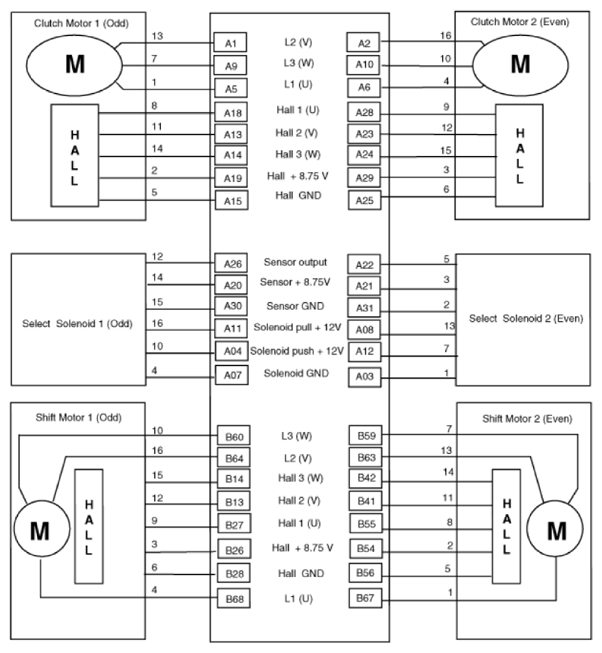

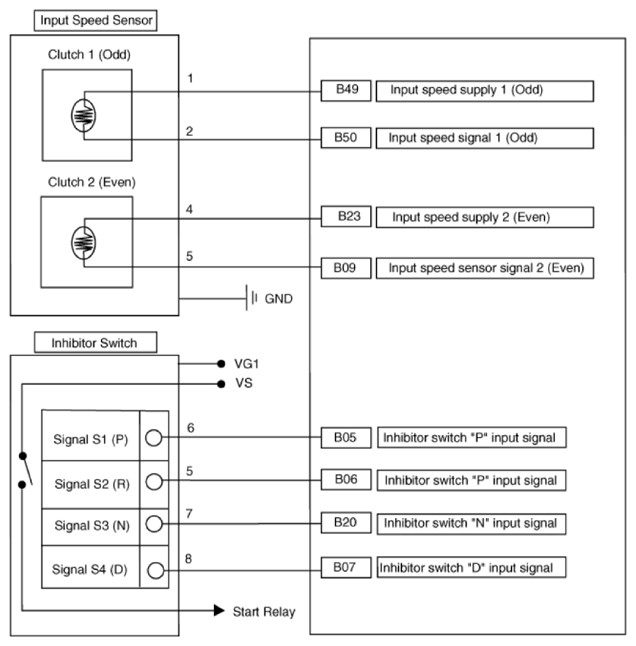

Home › Kia › 2021 › Niro Plug-In Hybrid LXS › Repair and Diagnosis › Transmission › Transmission Control Systems › Double Clutch Transmission Control System (PHEV) › DCT Control Module (TCM) › Schematic Diagrams › Circuit Diagram
