Niro Plug-In Hybrid LXS
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Double Clutch Transmission Control System (PHEV)
›
Inhibitor Switch
›
Components & Components Location
›
Component Location
Component Location

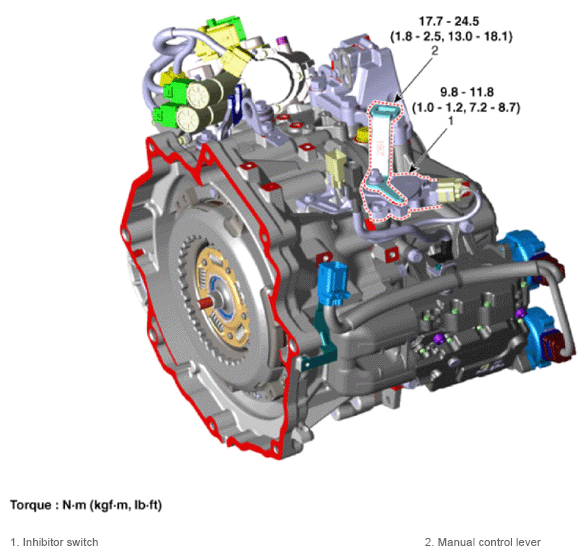

Fig 1: Inhibitor Switch Components With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
