Repair Procedures: Inspection

  1. Check the resistance between terminals in each switch position (LH).

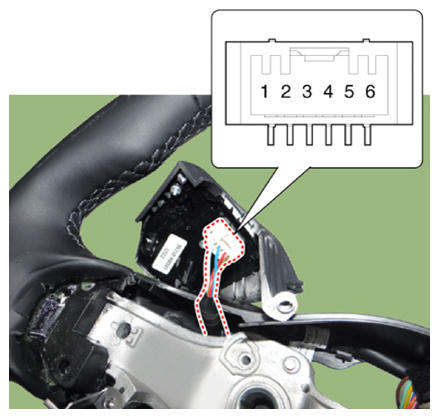

    G13706084Courtesy of KIA MOTORS AMERICA, INC.

    [LH: Audio + Hands free + Voice]

    Switch Connector terminal Resistance (±3%)
    SEEK Up 1-6 430 Ω
    SEEK Down 1.11 Ω
    MODE 2.11 Ω
    MUTE 3.11 Ω
    Volume (+) 4.61 Ω
    Volume (-) 6.81 Ω
    Voice 10.71 Ω
    END 18.91 kΩ
    SEND 40.91 kΩ
  2. Check for resistance between terminals in each switch position (RH).

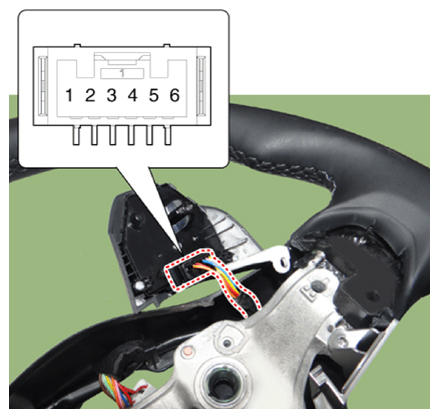

    G13706085Courtesy of KIA MOTORS AMERICA, INC.

    [RH: Cruise + Trip]

    Switch Connector terminal Resistance (±3%)
    Cancel 2-6 390 Ω
    SET - 610 Ω
    RES + 910 Ω
    Cruise ON/OFF 1.38 kΩ
    Cruise & Speed Limit ON/OFF Cruise Mode 2.13 kΩ
    Group 1-6 390 Ω
    Trip Up 610 Ω
    Trip Down 910 Ω
    OK/Reset 1.38 kΩ
