Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the steering wheel assembly.
(Refer to Steering System - "STEERING WHEEL ")

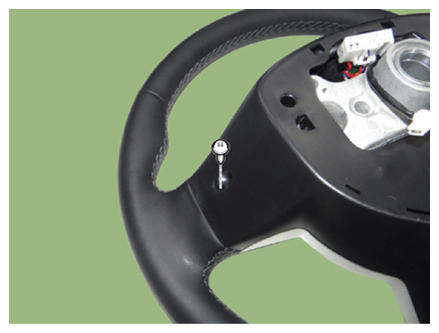

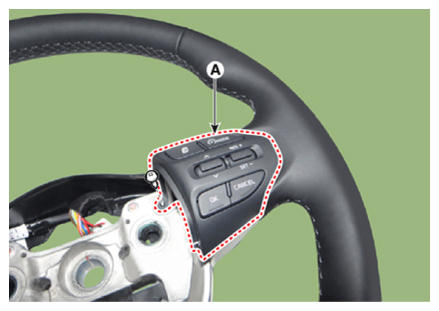

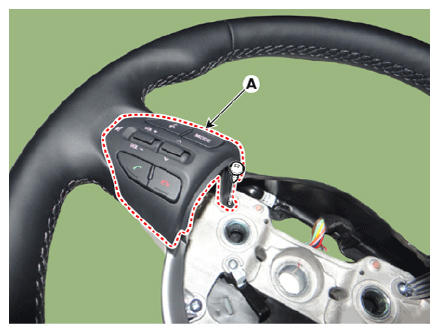

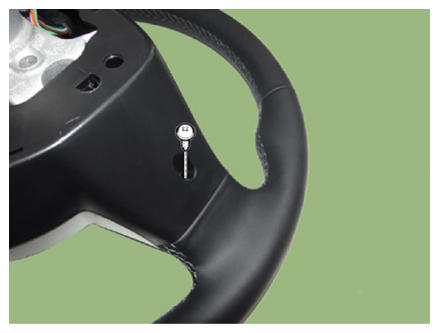

Remove the steering wheel remote control (A) after loosening the mounting screws.
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

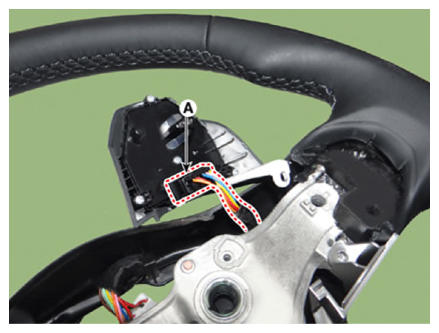

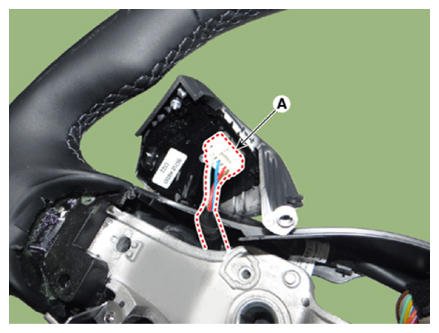

Disconnect the steering wheel remote control connector (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
