Interior 2 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body - "REPLACEMENT ")

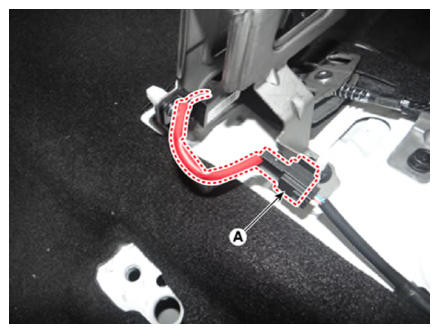

  3. Disconnect the interior 2 antenna connector (A).
    G13706517Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the interior 2 antenna (A) after loosening the mounting screws.
    G13706518Courtesy of KIA MOTORS AMERICA, INC.
