Repair Procedures: Replacement

Information

When removing and installing the tail gate, an assistant is needed.

1. Remove the tailgate trim (A).

   (Refer to liftgate - "LIFTGATE TRIM ")

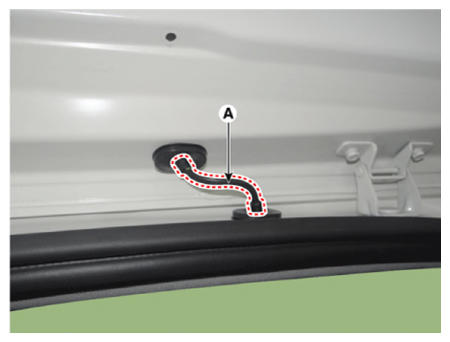

2. Disconnect the washer nozzle hose (A) and high mounted stop lamp connector (B).

   Courtesy of HYUNDAI MOTOR AMERICA

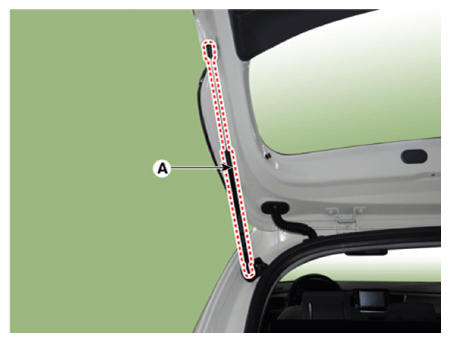

3. Using a screwdriver, lift the socket clips (A) up slightly on both ends of the tailgate lifter (B).

   Courtesy of HYUNDAI MOTOR AMERICA

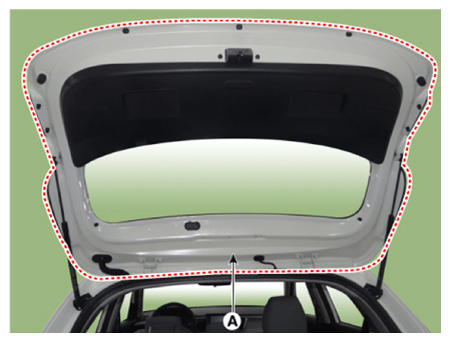

4. Remove the tailgate assembly (A) after loosening the mounting bolts.

   Tightening torque:

   21.6 - 26.5 N.m (2.2 -2.7 kgf.m, 15.9 - 19.5 lb.ft)

   Courtesy of HYUNDAI MOTOR AMERICA

5. Install in the reverse order of removal.

   Information

   • Make sure the tail gate locks/unlocks and opens/closes properly.
   • Adjust the tail gate alignment.
   • Make sure the connectors are connected in properly.
   • Replace any damaged clips.
