Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Remove the rear seat assembly.

   (Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

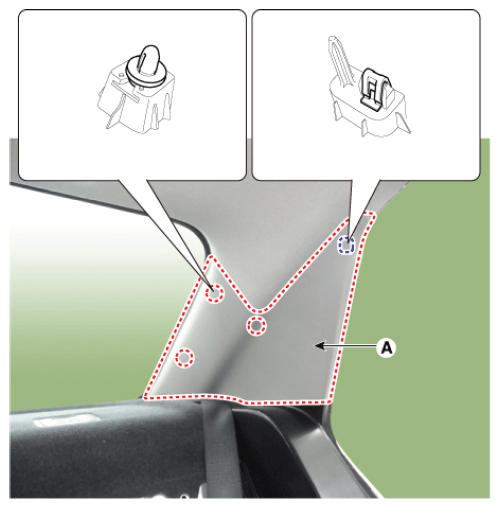

2. Remove the rear pillar trim (A) by using a remover.

   Courtesy of HYUNDAI MOTOR AMERICA

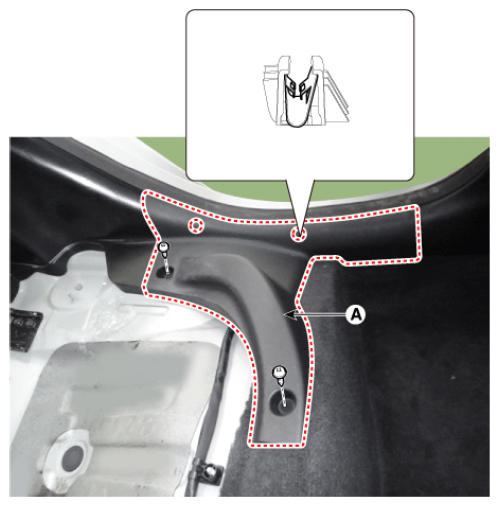

3. Remove the rear door scuff trim.

   Courtesy of HYUNDAI MOTOR AMERICA

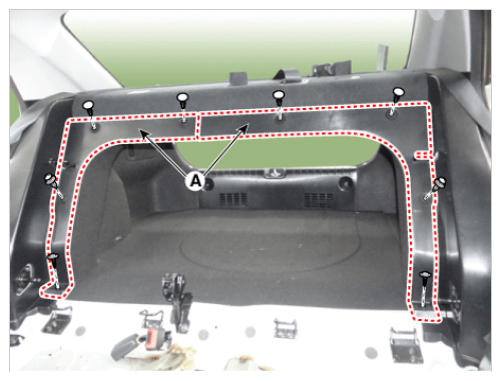

4. Remove the rear partition trim (A) after loosing the mounting screw.

   Courtesy of HYUNDAI MOTOR AMERICA

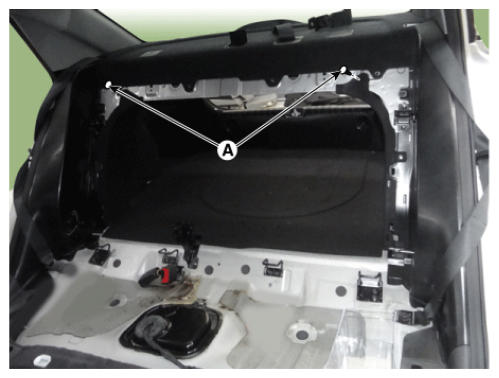

5. Remove the luggage side trims mounting clips (A).

   Courtesy of HYUNDAI MOTOR AMERICA

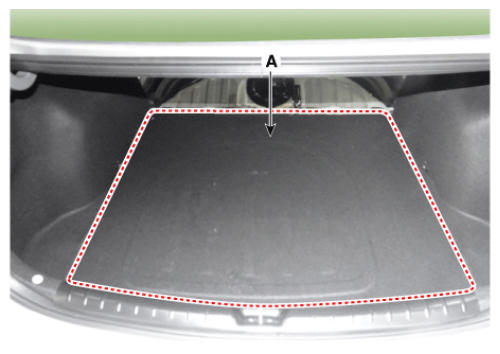

6. Remove the luggage covering (A).

   Courtesy of HYUNDAI MOTOR AMERICA

7. Separate the tailgate weatherstrip.

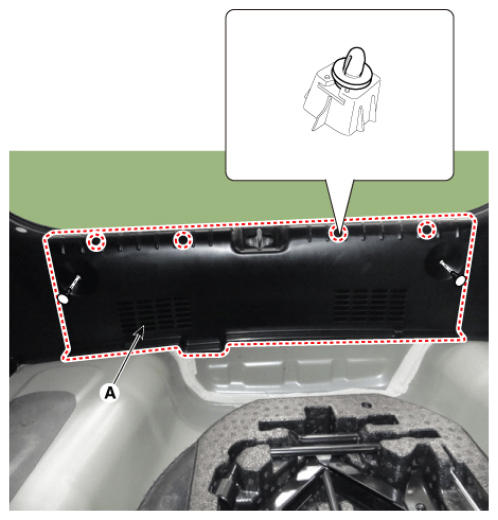

8. Remove the rear transverse trim (A).

   Courtesy of HYUNDAI MOTOR AMERICA

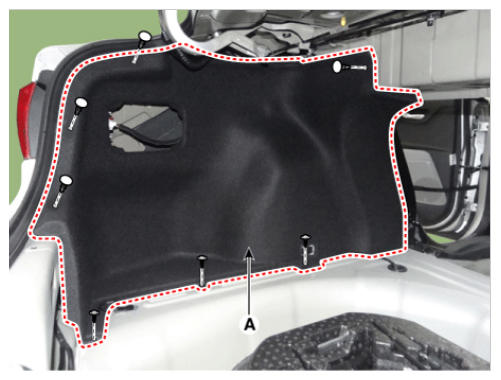

9. Remove the luggage side trim (A) after loosening the screws and clips.

   Courtesy of HYUNDAI MOTOR AMERICA

10. Install in the reverse order of removal.
    CAUTION:

    • Make sure that the connector is connected properly.
    • Replace any damage clips.
