Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center lower panel.

    (Refer to CRASH PAD CENTER PANEL ")

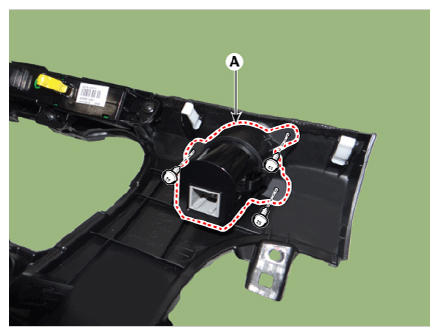

  3. Remove the start/stop button (A) after loosening the mounting screws.
    G13706121Courtesy of KIA MOTORS AMERICA, INC.
