Vehicle S/W Management

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS/GDS to Data Link Connector (DLC). Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS/GDS.	Fig.1 to 2 Fig.3 to 5

CAUTION: Using KDS/GDS performs the "Vehicle S/W Management" → "CLU Variant Coding" item.
The DTC is erased when programming is properly performed.

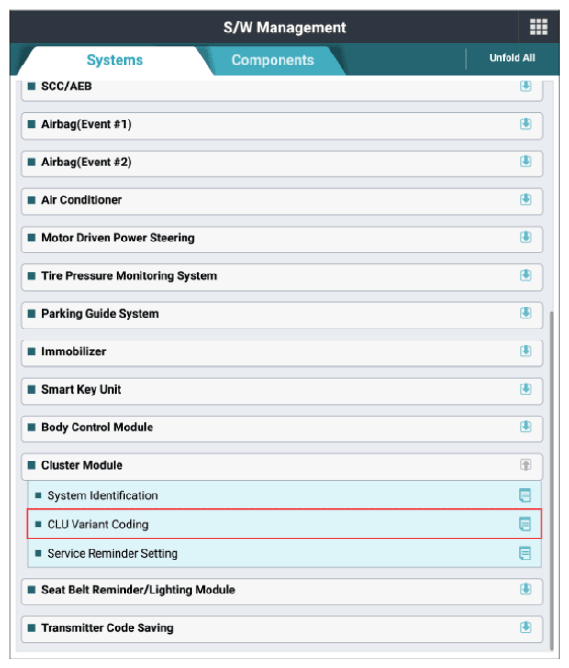

G13707792

Courtesy of KIA MOTORS AMERICA, INC.

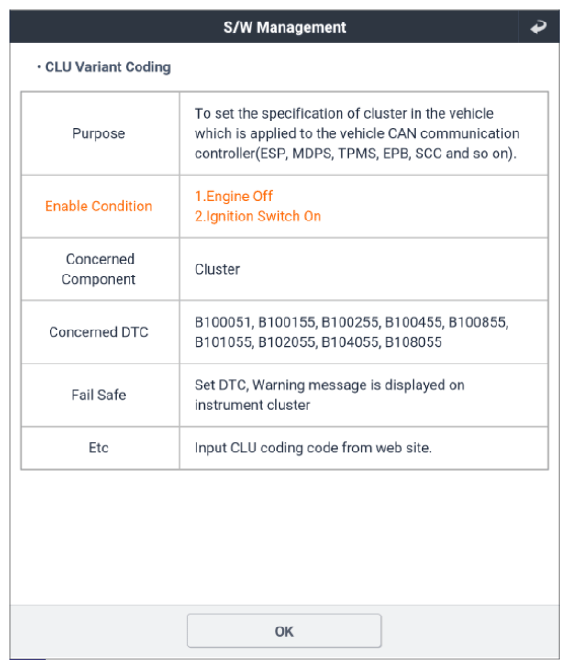

G13707793

Courtesy of KIA MOTORS AMERICA, INC.

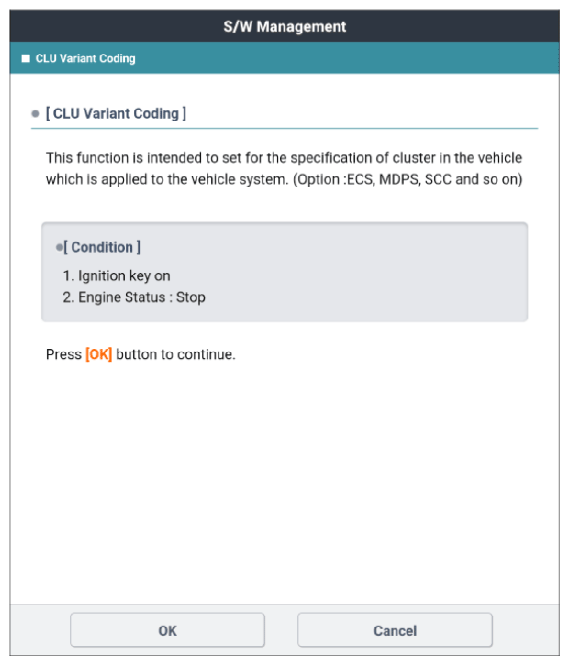

G13707794

Courtesy of KIA MOTORS AMERICA, INC.

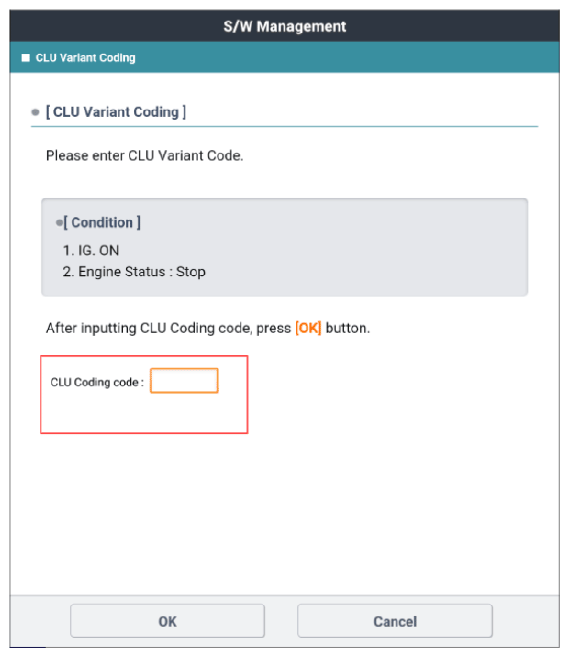

G13707795

Courtesy of KIA MOTORS AMERICA, INC.

G13707796

Courtesy of KIA MOTORS AMERICA, INC.

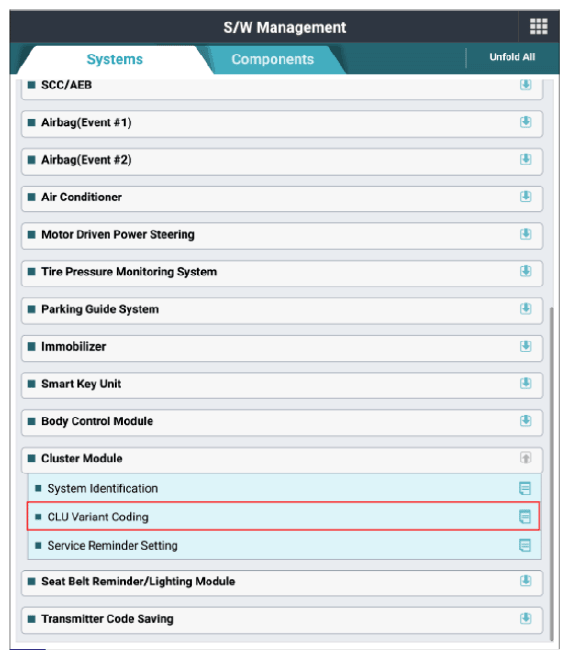

G13707797

Courtesy of KIA MOTORS AMERICA, INC.

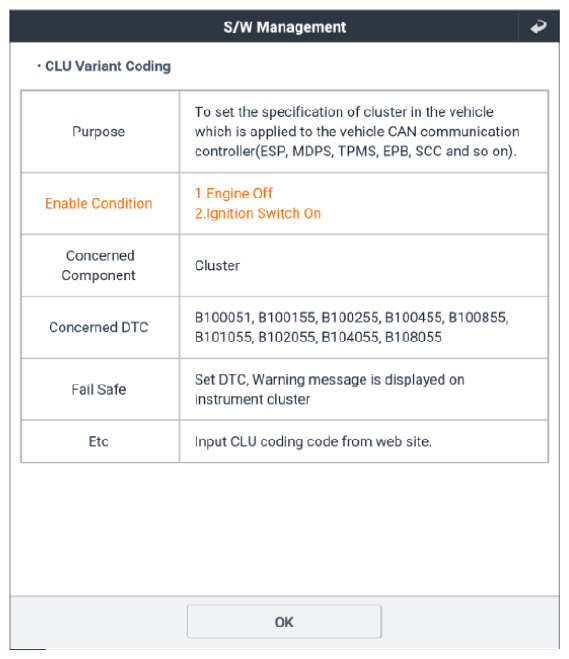

G13707798

Courtesy of KIA MOTORS AMERICA, INC.

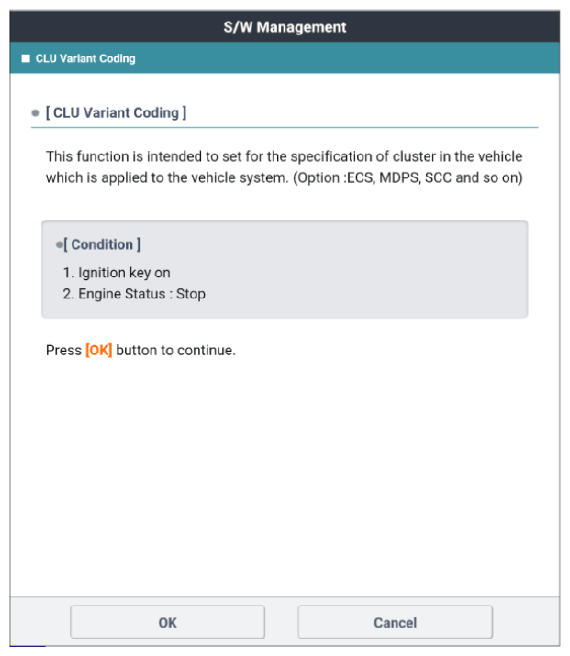

G13707799

Courtesy of KIA MOTORS AMERICA, INC.

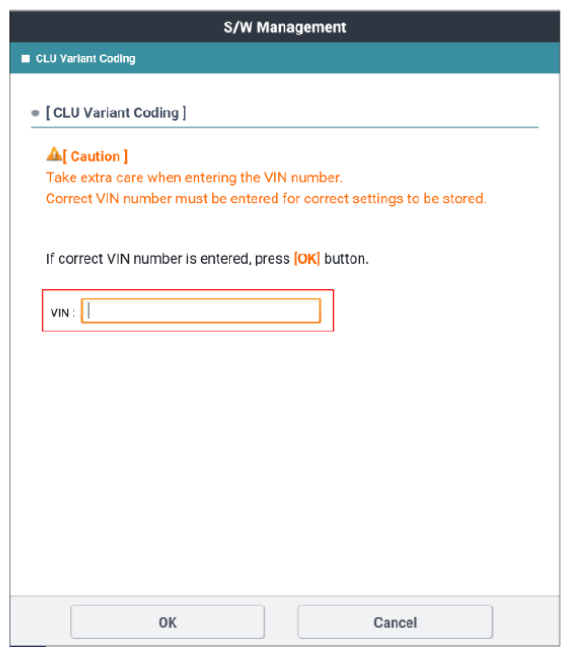

G13707800

Courtesy of KIA MOTORS AMERICA, INC.

G13707801

Courtesy of KIA MOTORS AMERICA, INC.
