Vehicle S/W Management

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS/GDS to Data Link Connector (DLC). Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS/GDS.	Fig.1 to 2 Fig.3 to 5

CAUTION: Using KDS/GDS performs the "Vehicle S/W Management" → "CLU Variant Coding" item.
The DTC is erased when programming is properly performed.

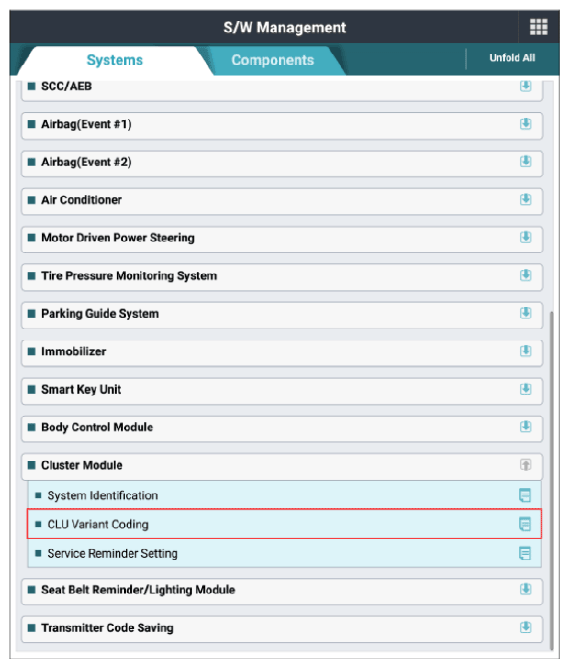

G13707876

Courtesy of KIA MOTORS AMERICA, INC.

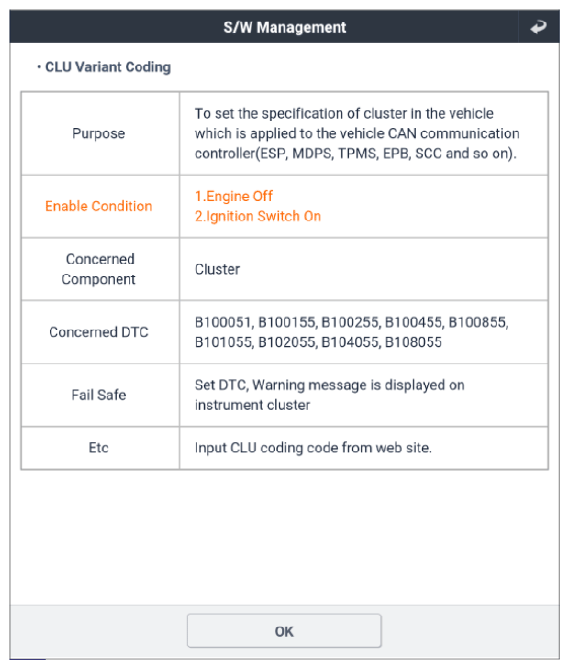

G13707877

Courtesy of KIA MOTORS AMERICA, INC.

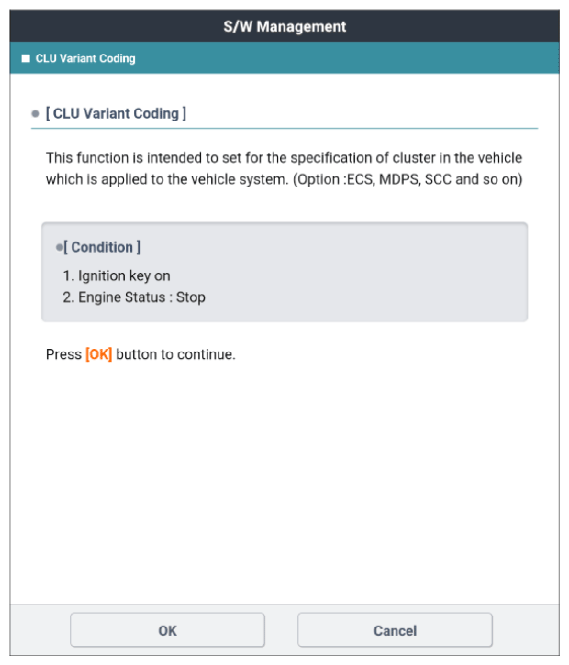

G13707878

Courtesy of KIA MOTORS AMERICA, INC.

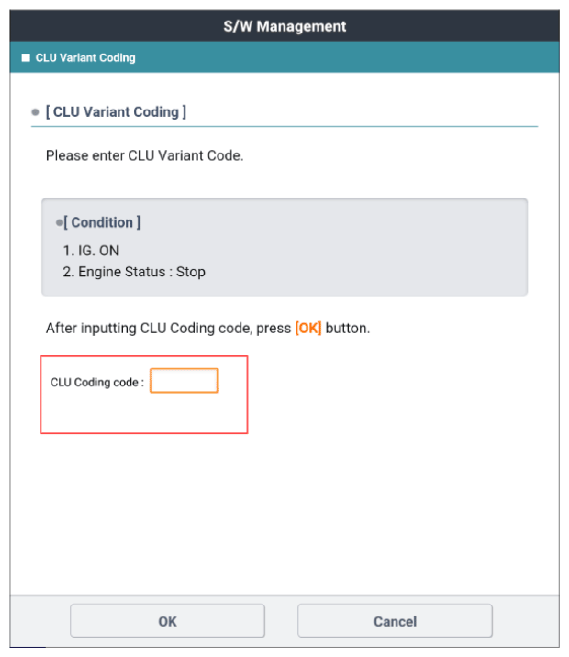

G13707879

Courtesy of KIA MOTORS AMERICA, INC.

G13707880

Courtesy of KIA MOTORS AMERICA, INC.

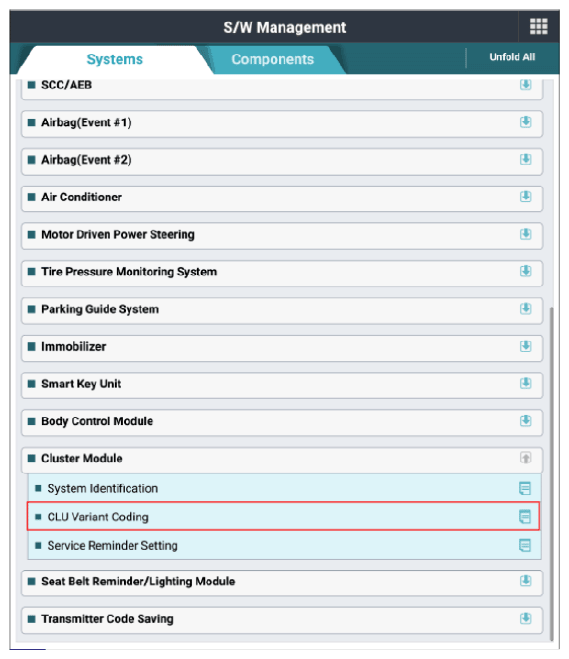

G13707881

Courtesy of KIA MOTORS AMERICA, INC.

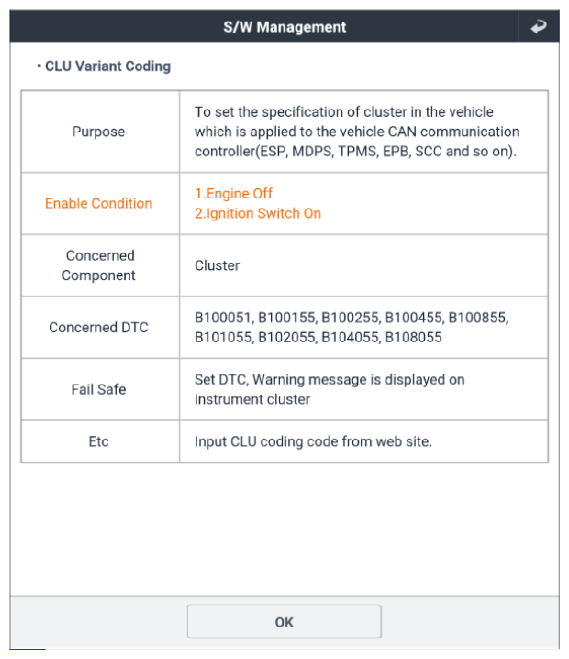

G13707882

Courtesy of KIA MOTORS AMERICA, INC.

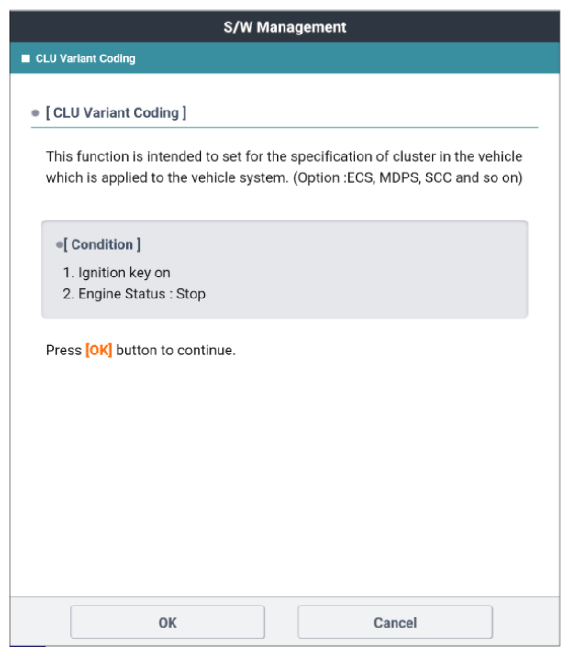

G13707883

Courtesy of KIA MOTORS AMERICA, INC.

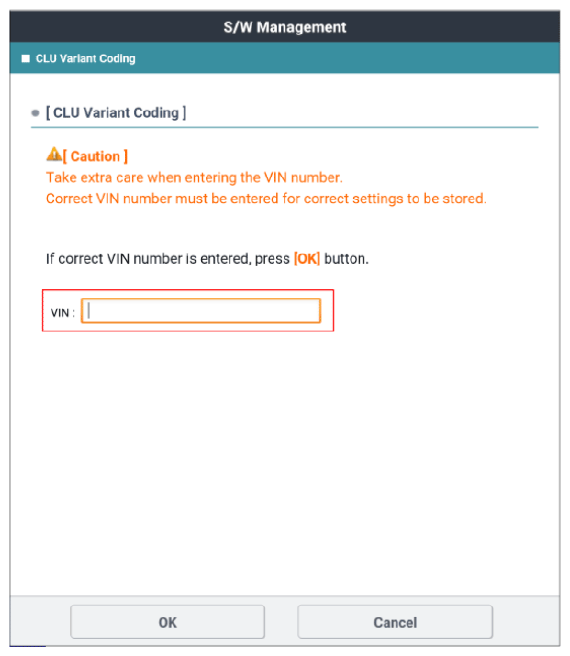

G13707884

Courtesy of KIA MOTORS AMERICA, INC.

G13707885

Courtesy of KIA MOTORS AMERICA, INC.
