Vehicle S/W Management

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS/GDS to Data Link Connector (DLC). Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS/GDS.	Fig.1 to 2 Fig.3 to 5

CAUTION: Using KDS/GDS performs the "Vehicle S/W Management" → "CLU Variant Coding" item.
The DTC is erased when programming is properly performed.

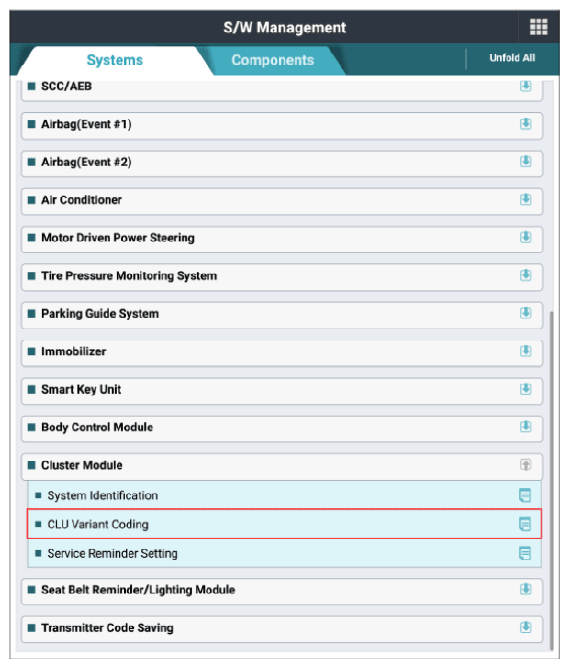

G13707960

Courtesy of KIA MOTORS AMERICA, INC.

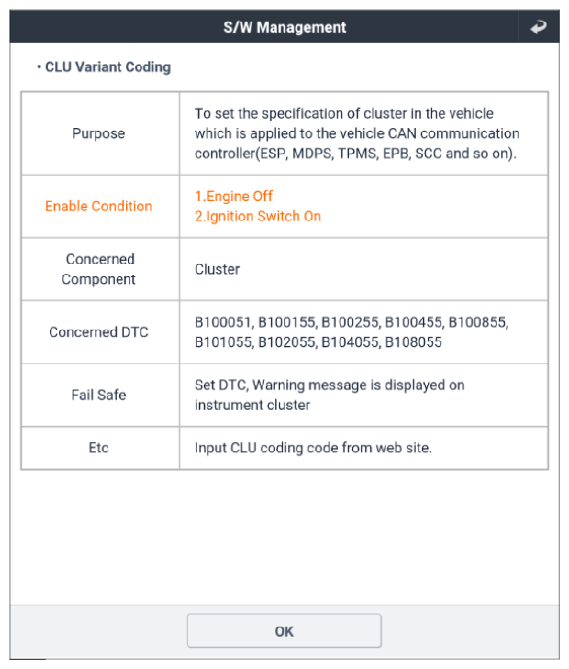

G13707961

Courtesy of KIA MOTORS AMERICA, INC.

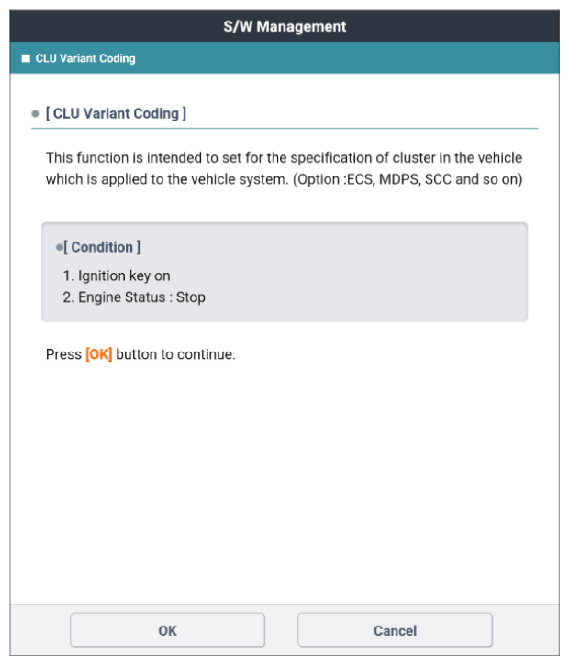

G13707962

Courtesy of KIA MOTORS AMERICA, INC.

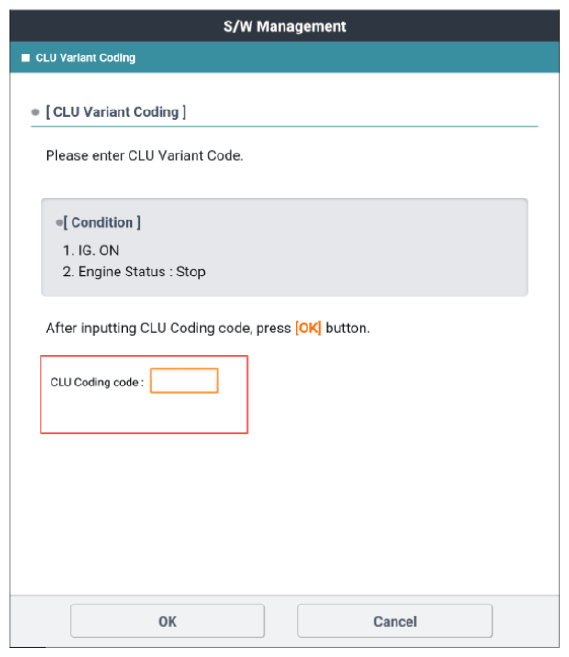

G13707963

Courtesy of KIA MOTORS AMERICA, INC.

G13707964

Courtesy of KIA MOTORS AMERICA, INC.

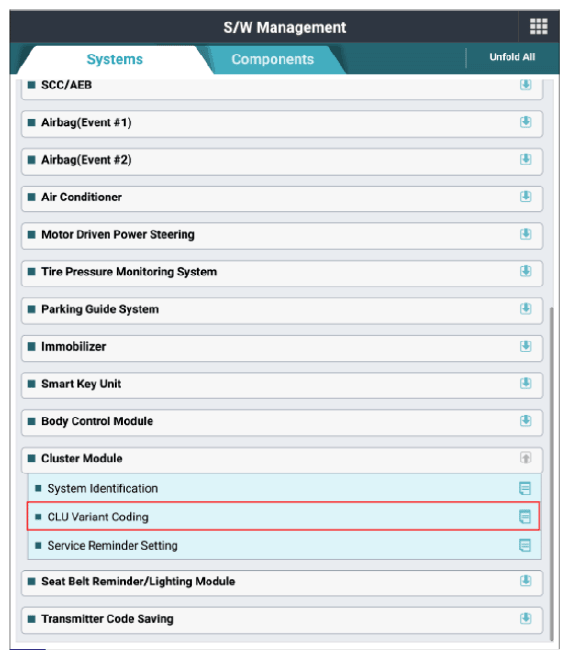

G13707965

Courtesy of KIA MOTORS AMERICA, INC.

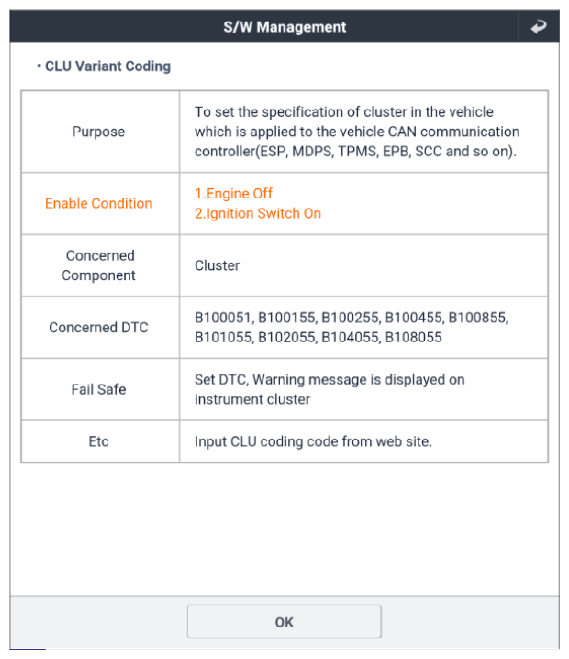

G13707966

Courtesy of KIA MOTORS AMERICA, INC.

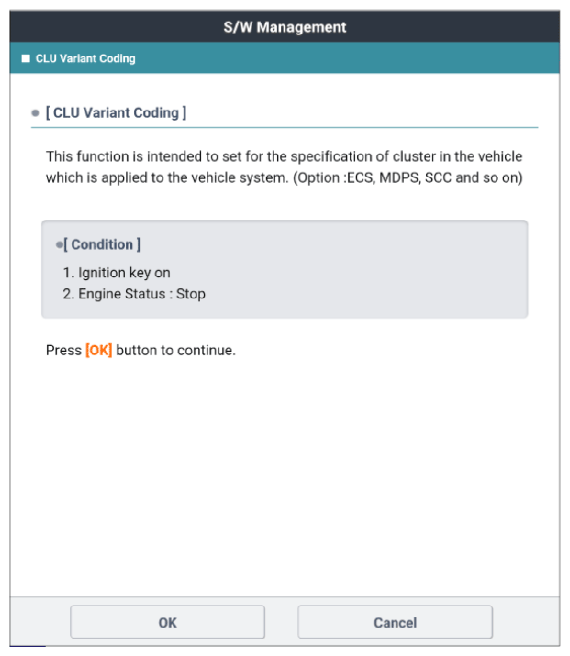

G13707967

Courtesy of KIA MOTORS AMERICA, INC.

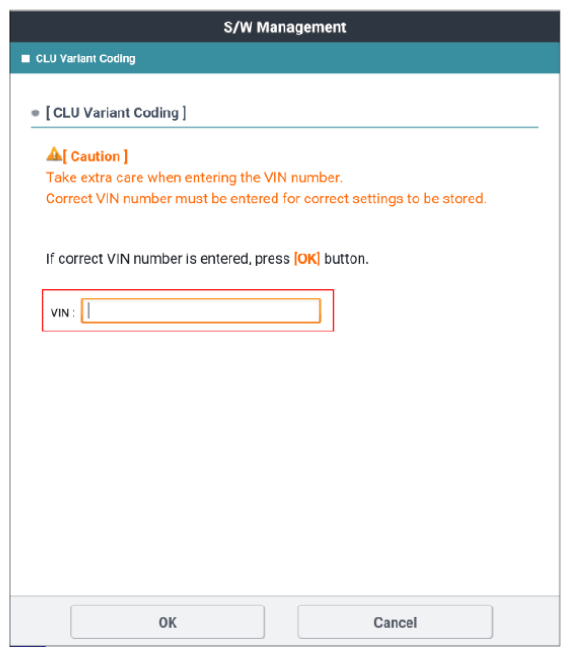

G13707968

Courtesy of KIA MOTORS AMERICA, INC.

G13707969

Courtesy of KIA MOTORS AMERICA, INC.
