Home › Kia › 2021 › Rio LX › Repair and Diagnosis › Electrical › Horns › Repair Procedures › Removal

Repair Procedures: Removal

  1. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

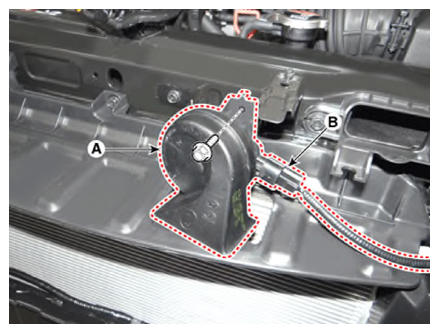

  2. Remove the horn (A) after disconnecting the horn connector (B) and loosening the mounting the bolt.
    G13706153Courtesy of HYUNDAI MOTOR AMERICA
