Components And Components Location: Components

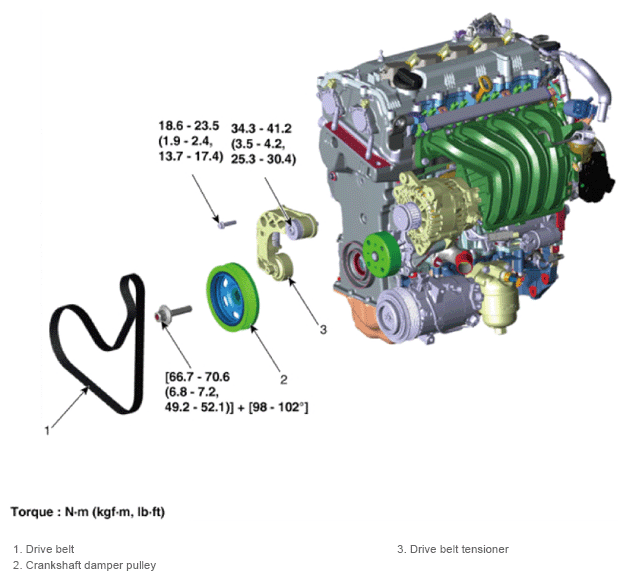

Fig 1: Drive Belt System Components Location With Torque Specification
G13704258Courtesy of HYUNDAI MOTOR AMERICA
