Repair Procedures: Removal: [Exhaust]

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

• To prevent impurities from entering OCV & center bolt, wear rubber gloves.

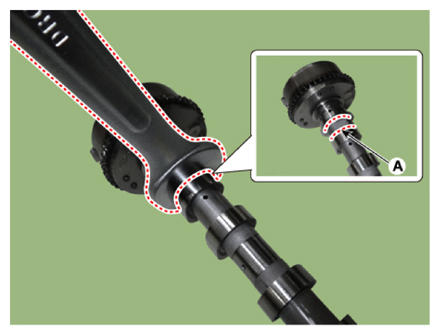

• When removing the OCV & center bolt, place a wrench at position (A) to prevent the camshaft from rotating.

  Courtesy of KIA MOTORS AMERICA, INC.
