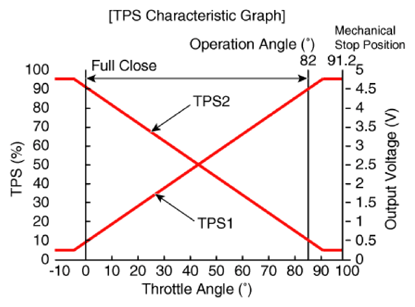

[Throttle Position Sensor (TPS)]

Throttle angle (°)	Output Voltage (V)
Throttle angle (°)	TPS1	TPS2
0	0.5	4.5
10	0.96	4.05
20	1.41	3.59
30	1.87	3.14
40	2.32	2.68
50	2.78	2.23
60	3.23	1.77
70	3.69	1.32
80	4.14	0.86
90	4.6	0.41
91.2	4.65	0.35
C.T (0°)	0.5	4.5
W.O.T (82°)	4.23	0.77

G13704637

Courtesy of KIA MOTORS AMERICA, INC.
