Integrated Thermal Management Module (ITM)
›
Components And Components Location
›
Components
Components And Components Location: Components

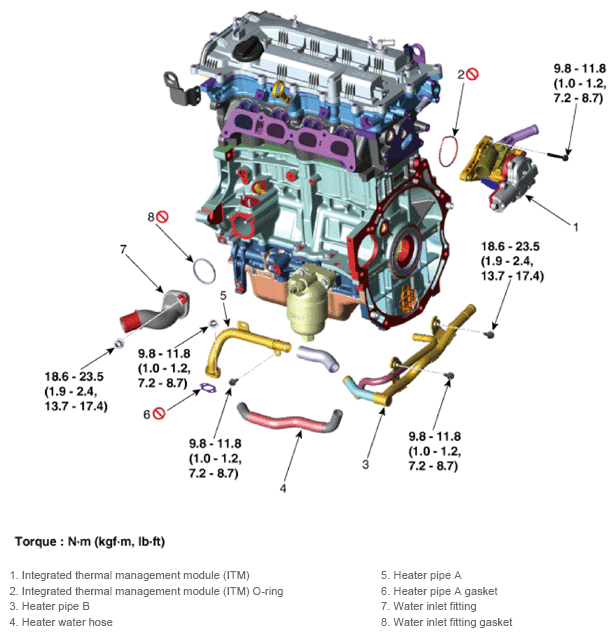

Fig 1: Integrated Thermal Management Module Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
