Circuit Inspection

G13709441

Courtesy of KIA MOTORS AMERICA, INC.

G13709442

Courtesy of KIA MOTORS AMERICA, INC.

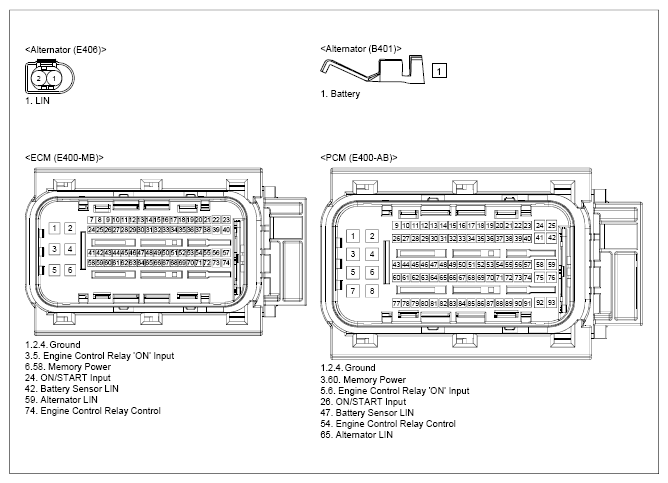

G13709443

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector (s) from the concerned component. Ignition "ON".	Alternator connector	1 (battery)	Chassis ground	-	B+
Ignition "OFF". Disconnect the electrical connector (s) from the concerned component.	Alternator connector	1 (LIN)	PCM connector	65 (alternator LIN)	Approx. below 1Ω
	Alternator connector	1 (LIN)	ECM connector	59 (alternator LIN)	Approx. below 1Ω
	Alternator connector	1 (LIN)	Chassis ground	-	Approx. below 1Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
