Connector Assembly Status Test

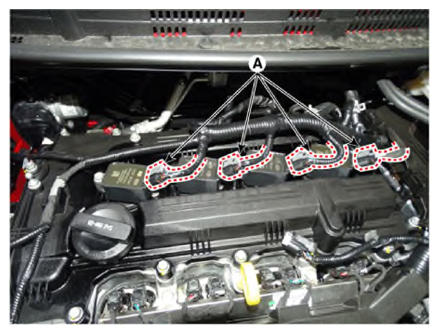

  1. Remove the connector (A) and reinstall it.
    G13704484Courtesy of KIA MOTORS AMERICA, INC.

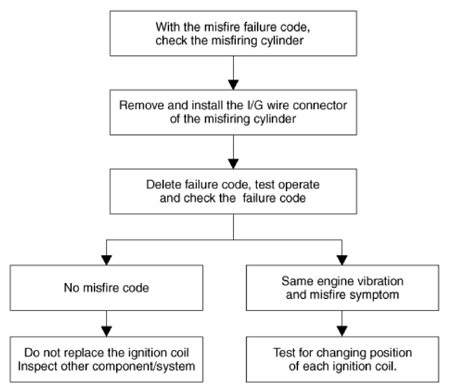

    G13704485Courtesy of KIA MOTORS AMERICA, INC.
