Repair Procedures: Removal

  1. Remove the Ignition from the vehicle.
  2. Disconnect the battery negative terminal and wait for at least thirty seconds before beginning work.
  3. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  4. Disconnect the Supplemental Restraint System Control Module (SRSCM) connector (A).
    G13705298Courtesy of KIA MOTORS AMERICA, INC.

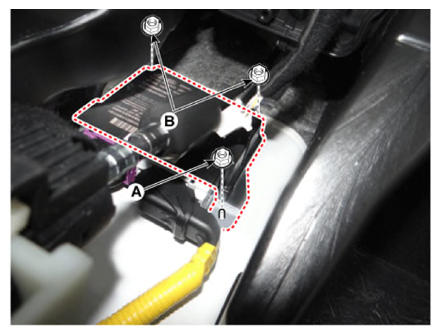

  5. Loosen the bolt (A) and nuts (B) and then remove the Supplemental Restraint System Control Module (SRSCM).
    G13705299Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: You must remove or install SRSCM or other SRS components with the ignition switch OFF to avoid accidental airbag deployment.
