Removal And Installation: Notes

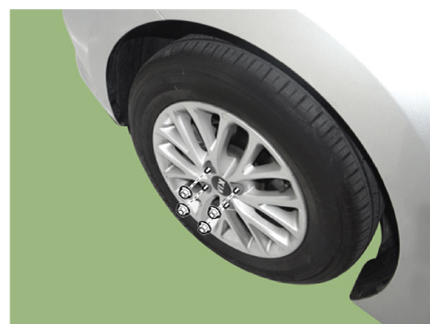

Remove wheel nuts, front wheel and tire from front hub.
Tightening torque:

107.9 -127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage the hub bolts when removing the front wheel and tire.

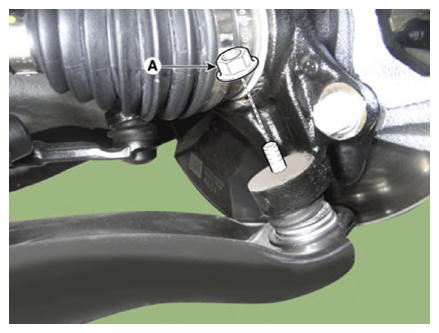

Remove the lower arm nut (A).
Tightening torque:

58.8 - 70.6 N.m (6.0 - 7.2 kgf.m, 43.4 - 52.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

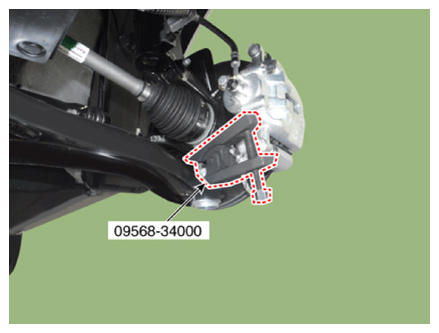

Remove the front lower arm from the front knuckle using the SST (09568-34000).

Courtesy of KIA MOTORS AMERICA, INC.

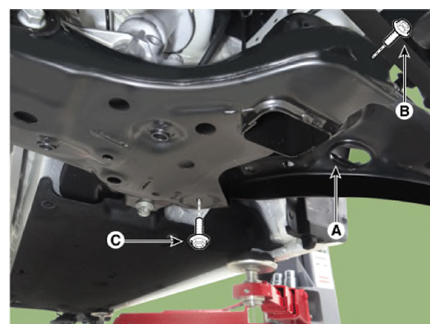

Remove the lower arm (A) from the sub frame.
Tightening torque:

B : 117.7 - 137.3 N.m (12.0 - 14.0 kgf.m, 86.8 - 101.3 lb.ft)

C : 156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Check the wheel alignment.
(Refer to Tires/Wheels - "ALIGNMENT ")
