Repair Procedures: Removal

Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

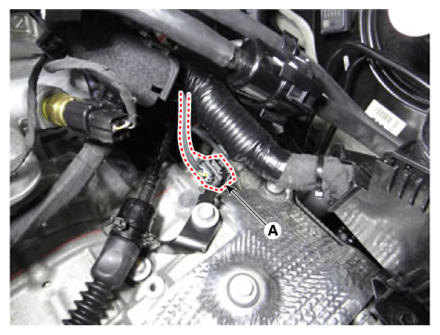

Disconnect the driven pulley speed sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

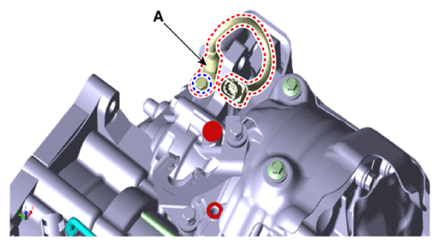

Remove the driven pulley speed sensor (A) after loosening the bolt.
Tightening torque:

9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
