Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box.

    (Refer to Body - "GLOVE BOX HOUSING ")

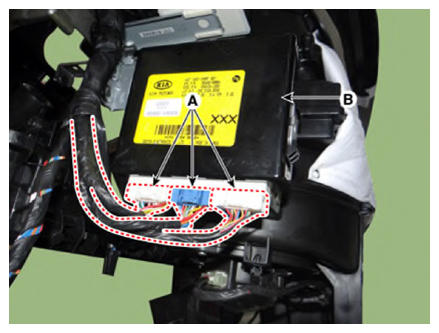

  3. Remove the smart key unit (B) after disconnecting the connectors (A).
    G13706514Courtesy of KIA MOTORS AMERICA, INC.

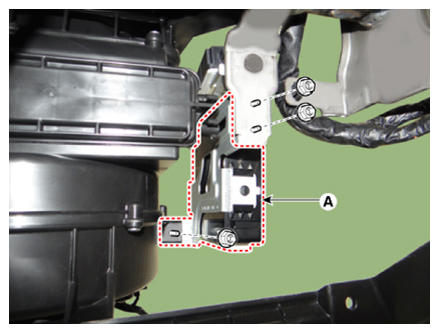

  4. Remove the smart key unit (A) after loosening the mounting nuts.
    G13706515Courtesy of KIA MOTORS AMERICA, INC.
