Vehicle S/W Management

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS/GDS to Data Link Connector (DLC). Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS/GDS.	Fig.1 to 2 Fig.3 to 5

CAUTION: Using KDS/GDS performs the "Vehicle S/W Management" → "CLU Variant Coding" item.
The DTC is erased when programming is properly performed.

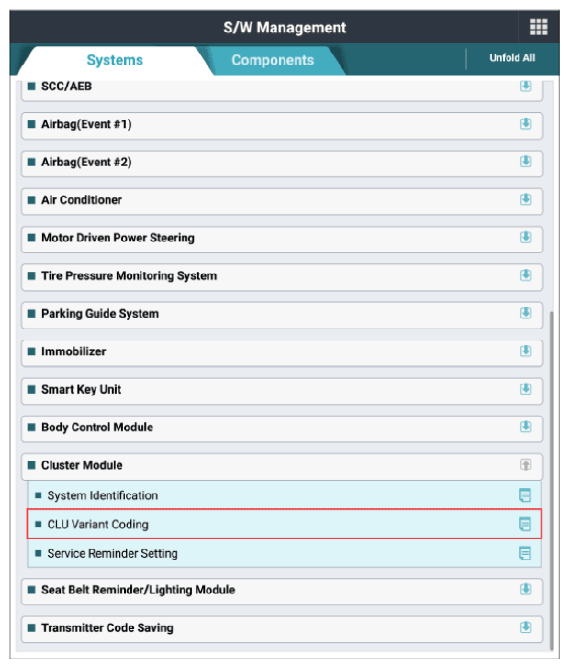

G13707932

Courtesy of KIA MOTORS AMERICA, INC.

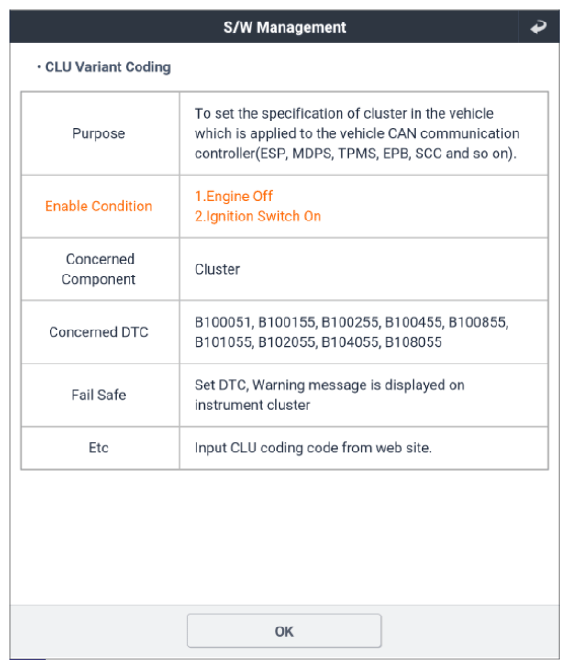

G13707933

Courtesy of KIA MOTORS AMERICA, INC.

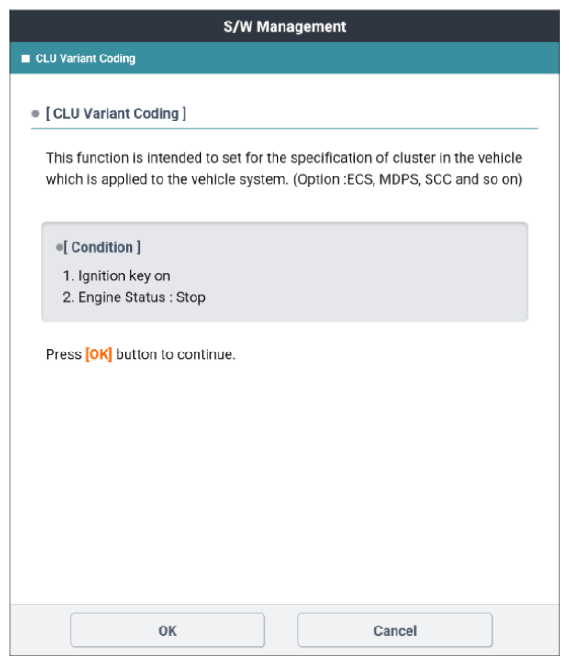

G13707934

Courtesy of KIA MOTORS AMERICA, INC.

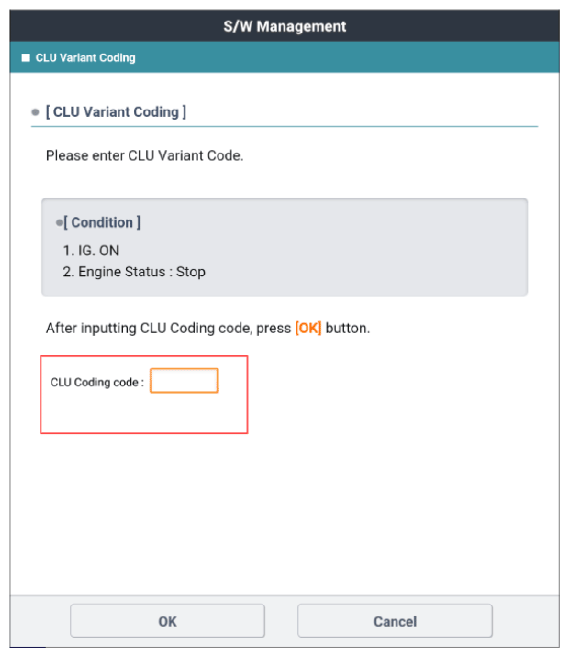

G13707935

Courtesy of KIA MOTORS AMERICA, INC.

G13707936

Courtesy of KIA MOTORS AMERICA, INC.

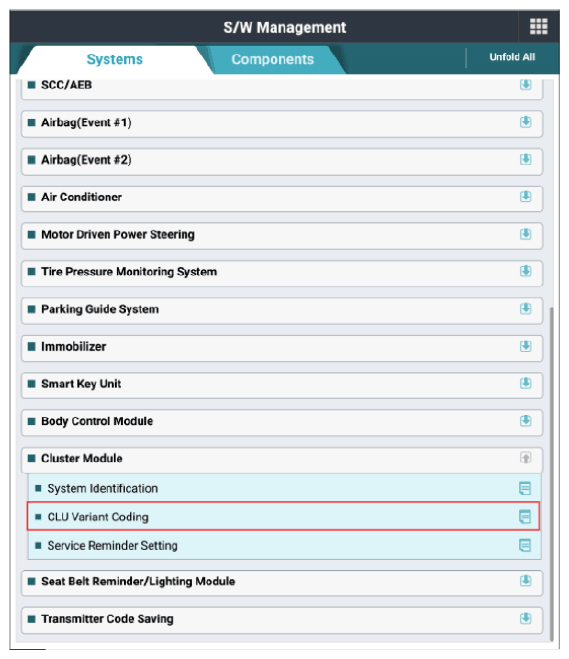

G13707937

Courtesy of KIA MOTORS AMERICA, INC.

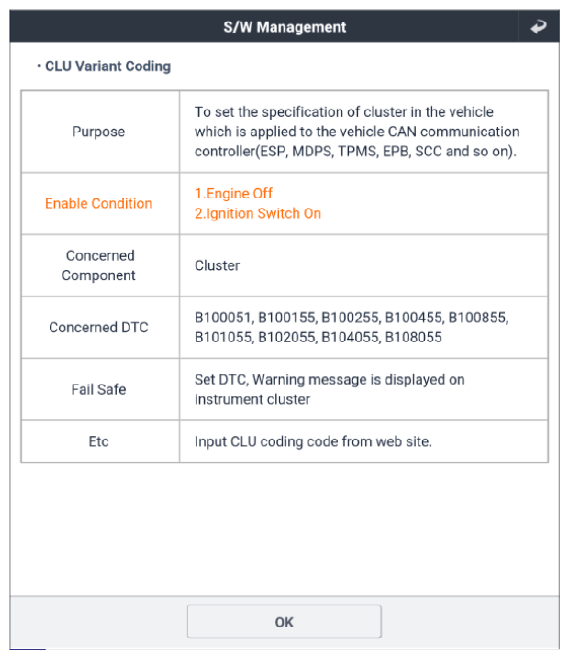

G13707938

Courtesy of KIA MOTORS AMERICA, INC.

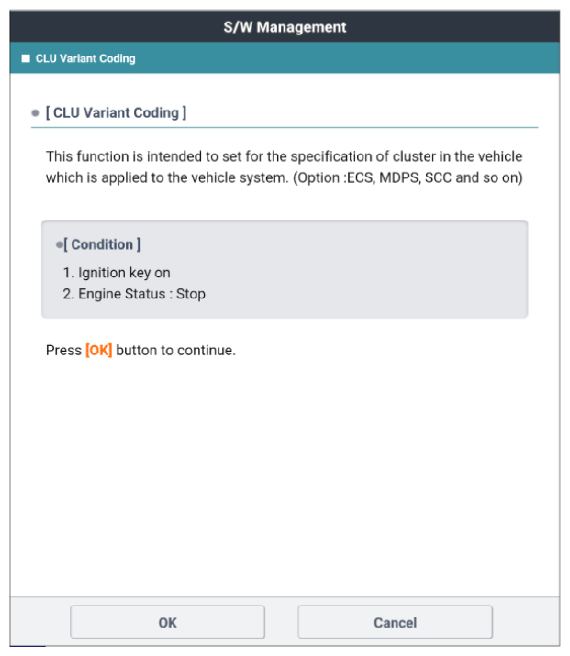

G13707939

Courtesy of KIA MOTORS AMERICA, INC.

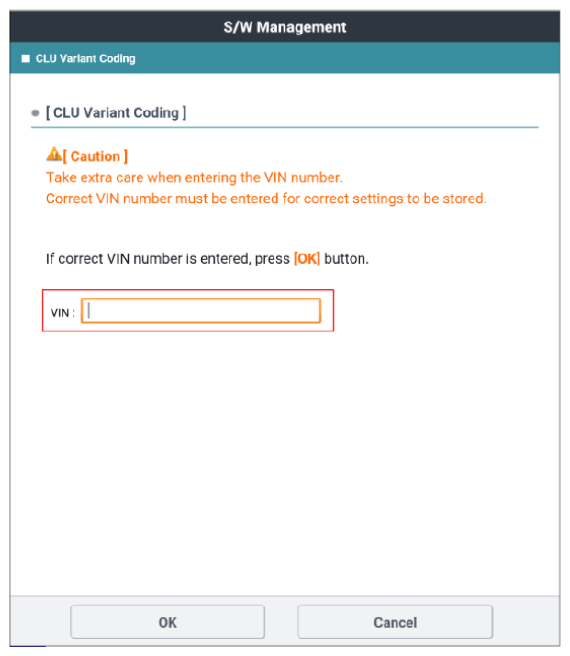

G13707940

Courtesy of KIA MOTORS AMERICA, INC.

G13707941

Courtesy of KIA MOTORS AMERICA, INC.
