Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition switch "OFF".
  2. Connect KDS to Data Link Connector (DLC).
  3. Select the "Vehicle S/WManagement" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUP & Input (TCU Replacement)" and go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 10

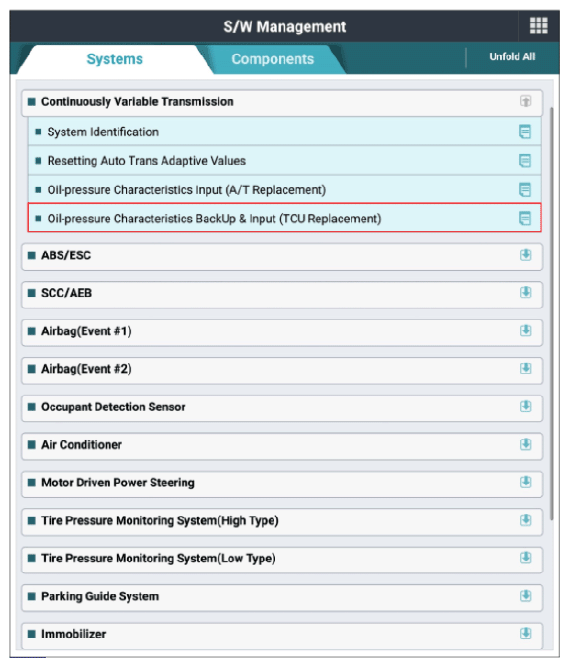

G13710692Courtesy of KIA MOTORS AMERICA, INC.

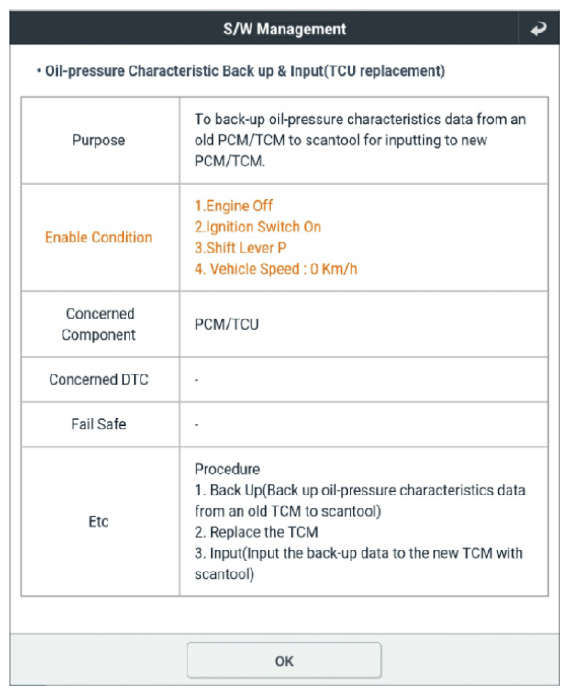

G13710693Courtesy of KIA MOTORS AMERICA, INC.

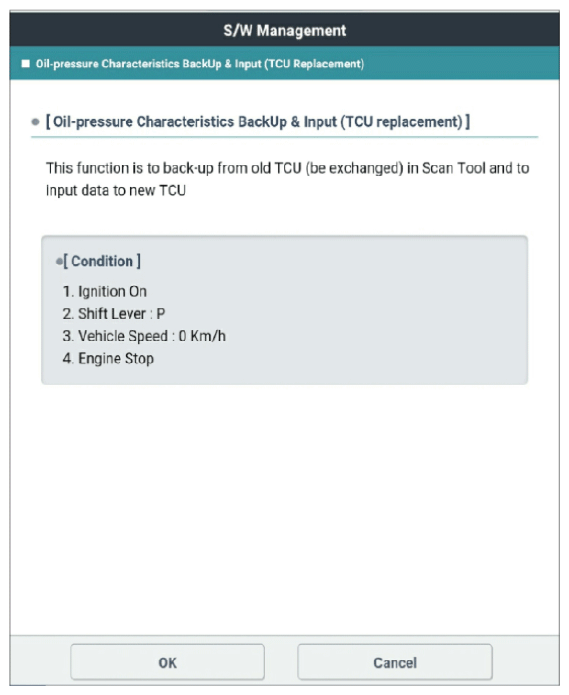

G13710694Courtesy of KIA MOTORS AMERICA, INC.

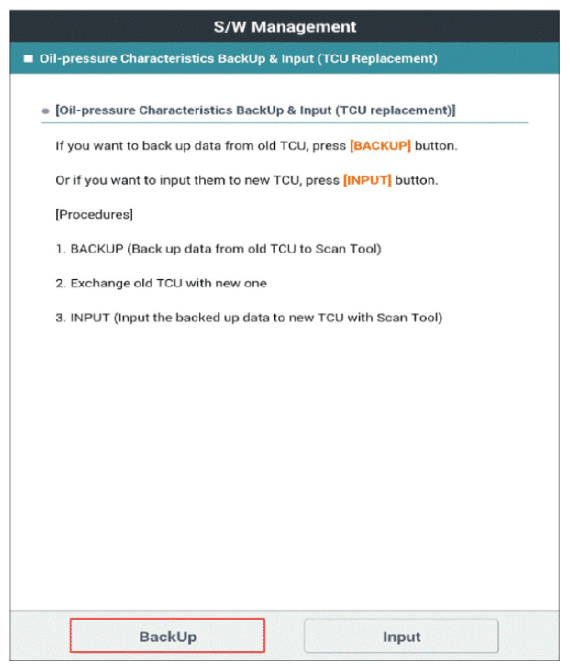

G13710695Courtesy of KIA MOTORS AMERICA, INC.

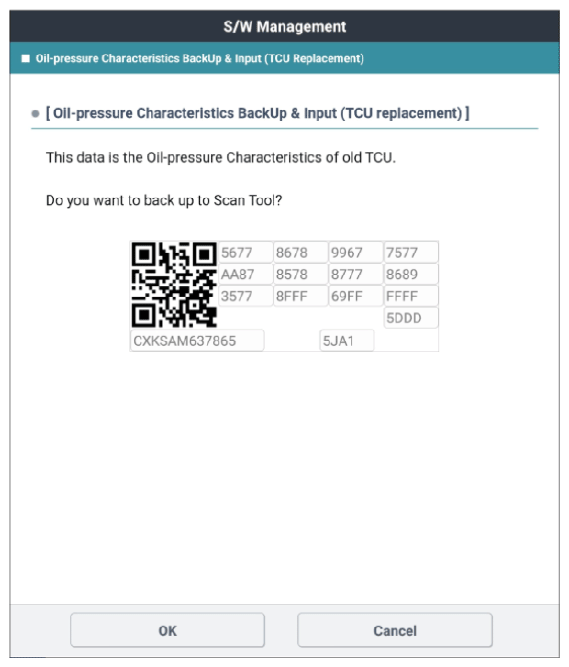

G13710696Courtesy of KIA MOTORS AMERICA, INC.

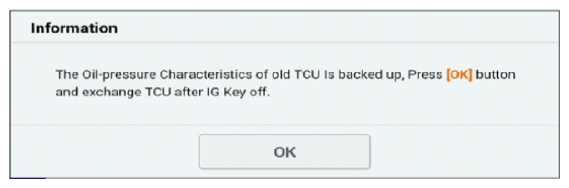

G13710697Courtesy of KIA MOTORS AMERICA, INC.

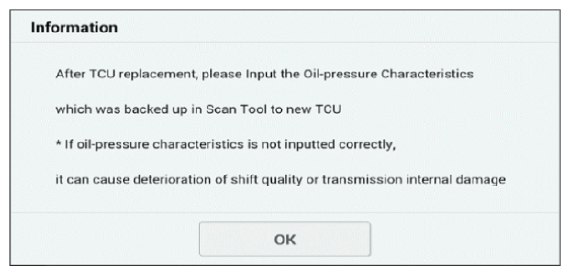

G13710698Courtesy of KIA MOTORS AMERICA, INC.

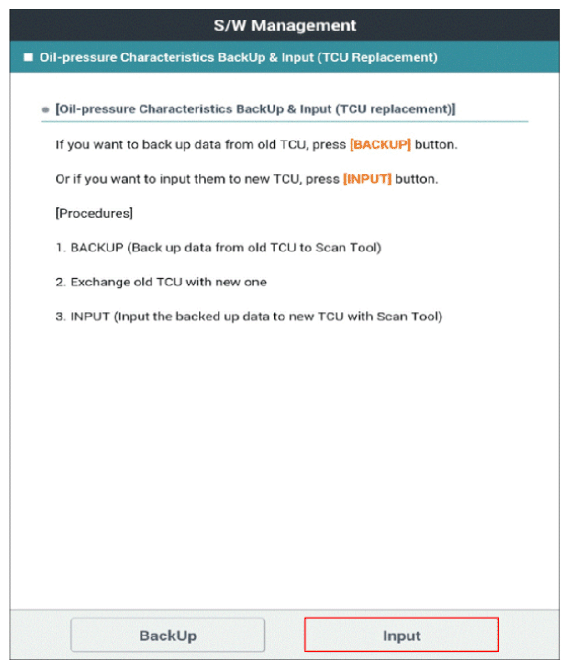

G13710699Courtesy of KIA MOTORS AMERICA, INC.

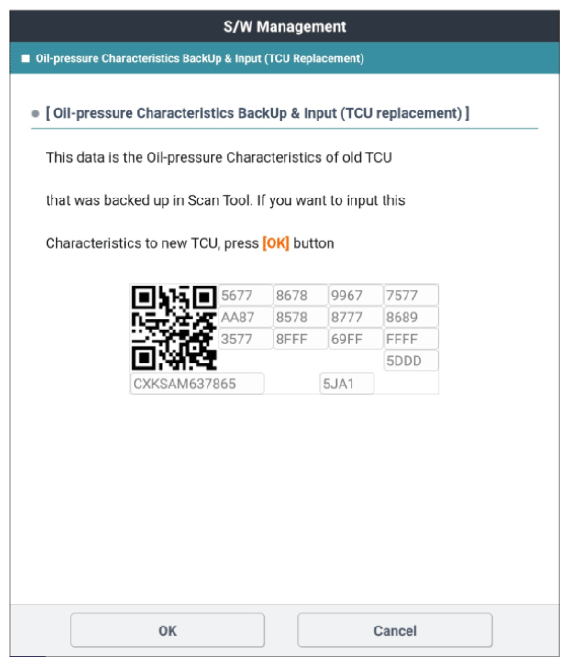

G13710700Courtesy of KIA MOTORS AMERICA, INC.

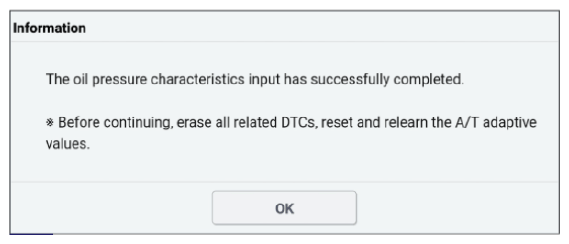

G13710701Courtesy of KIA MOTORS AMERICA, INC.
