Repair Procedures: Replacement

CAUTION:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  1. Remove the front seat assembly.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

  2. Remove the front seat shield outer cover.

    (Refer to Front Seat - "FRONT SEAT SHIELD OUTER COVER ")

  3. Remove the front seat shield inner cover.

    (Refer to Front Seat - "FRONT SEAT SHIELD INNER COVER ")

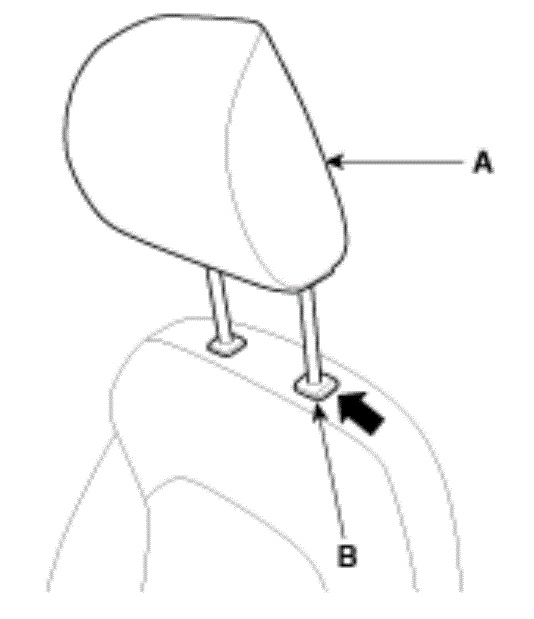

  4. Push the lock pin (B) and then pull out the front seat headrest (A).
    G13046143Courtesy of KIA MOTORS AMERICA, INC.

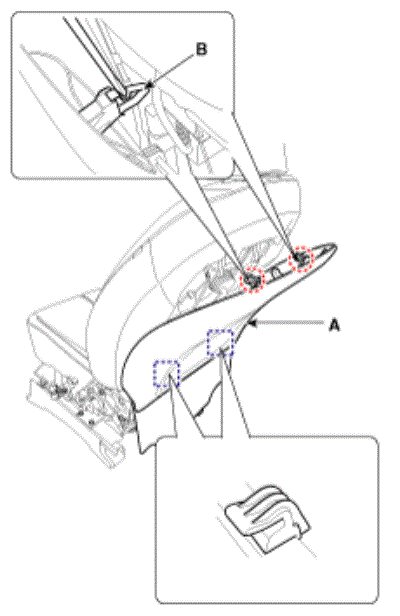

  5. Push the lock pins (B) from the front seat back board (A), then remove the back board.
    NOTE:
    • Using a flat head screwdriver, push the center of the clip.
    • Be careful not to damage the lock pins.
    G13046144Courtesy of KIA MOTORS AMERICA, INC.

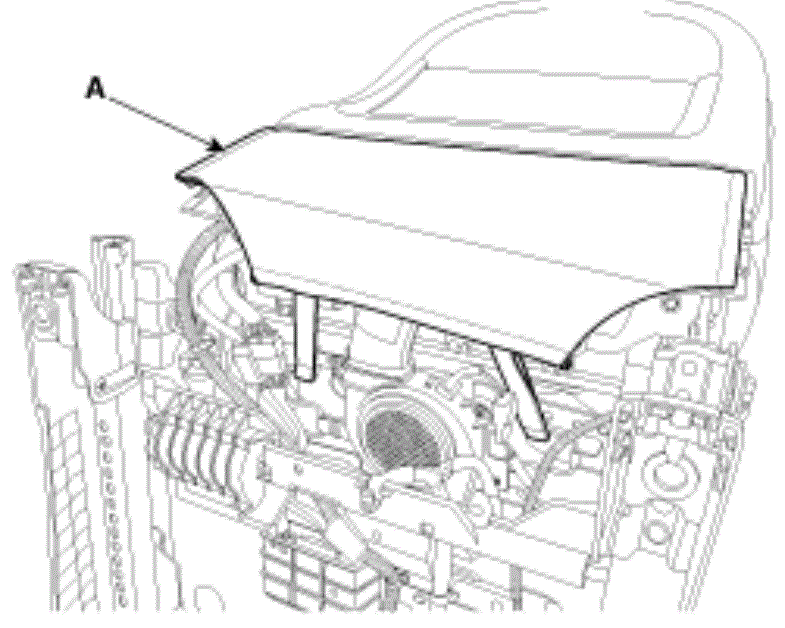

  6. Remove the front seat lower protector (A).
    G13046145Courtesy of KIA MOTORS AMERICA, INC.

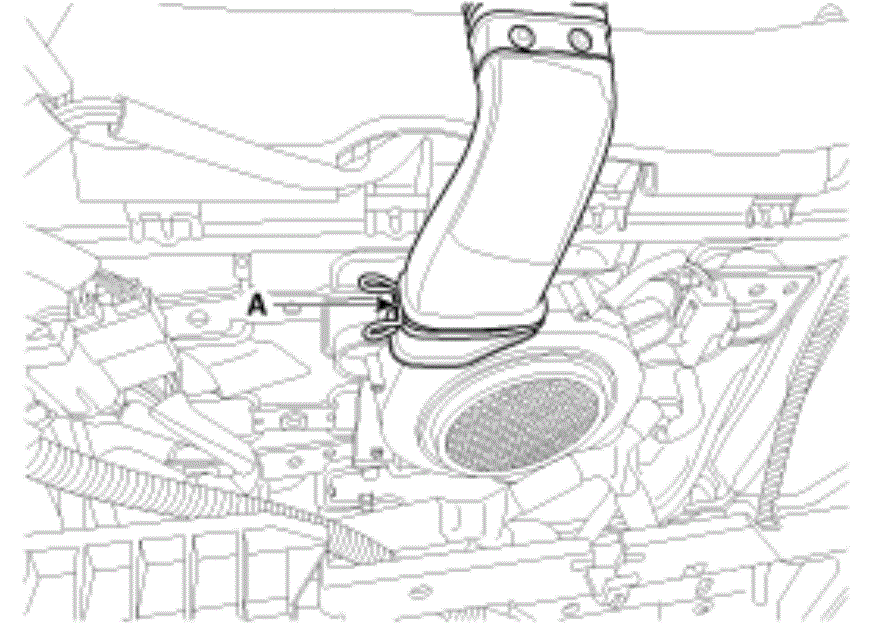

  7. Push the lock pin, then disconnect the front seat back duct lower (A).
    G13046146Courtesy of KIA MOTORS AMERICA, INC.

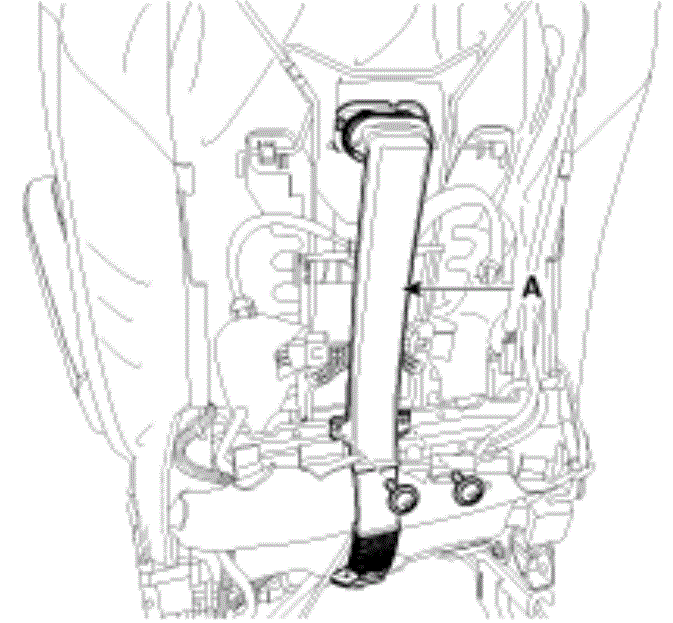

  8. Remove the front seat back duct (A) after loosening the mounting screws.
    G13046147Courtesy of KIA MOTORS AMERICA, INC.

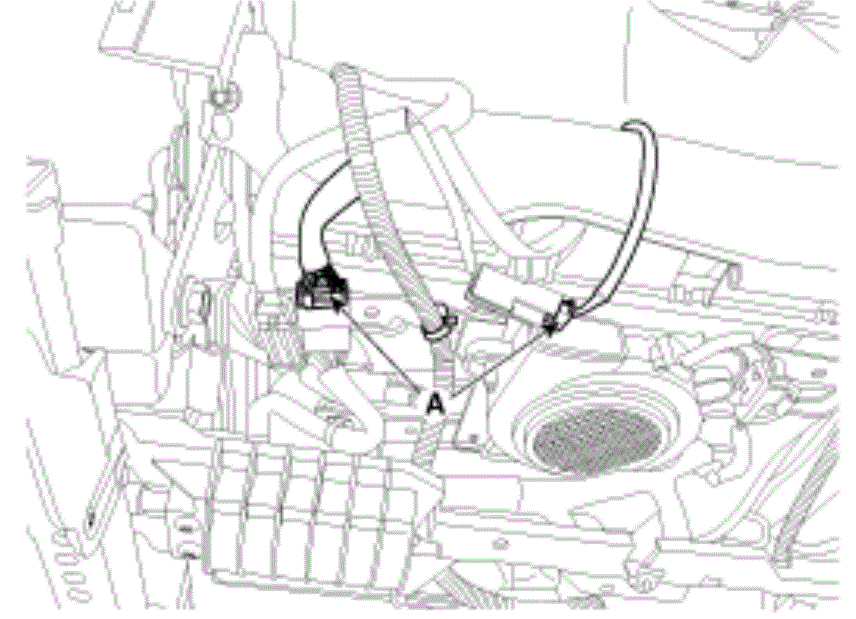

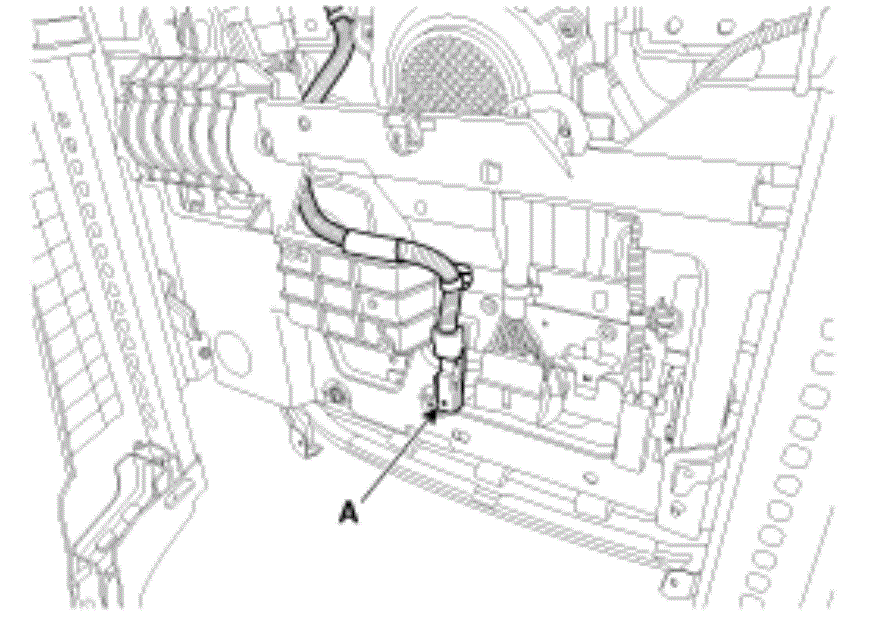

  9. Disconnect the front seat lower connectors (A).
    G13046148Courtesy of KIA MOTORS AMERICA, INC.
    G13046149Courtesy of KIA MOTORS AMERICA, INC.

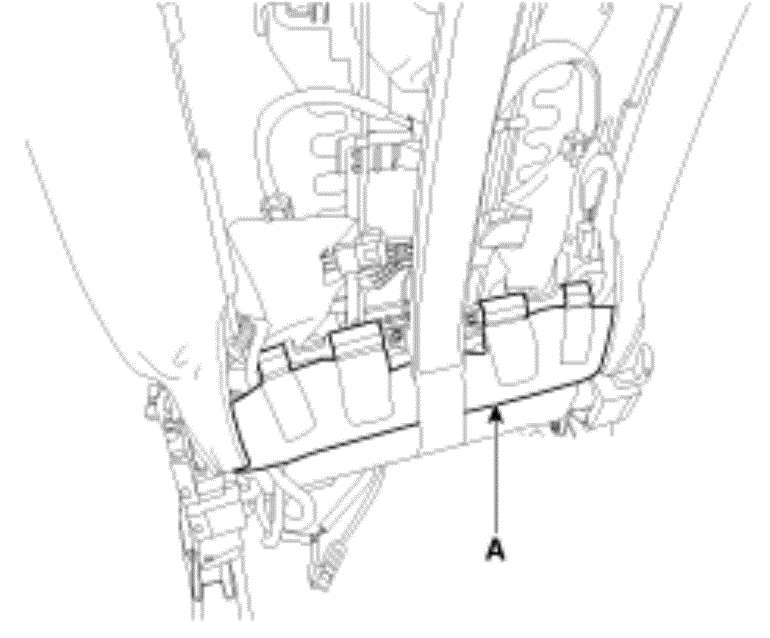

  10. Disconnect the fixing hook (A) from the front seat back lower.
    G13046150Courtesy of KIA MOTORS AMERICA, INC.

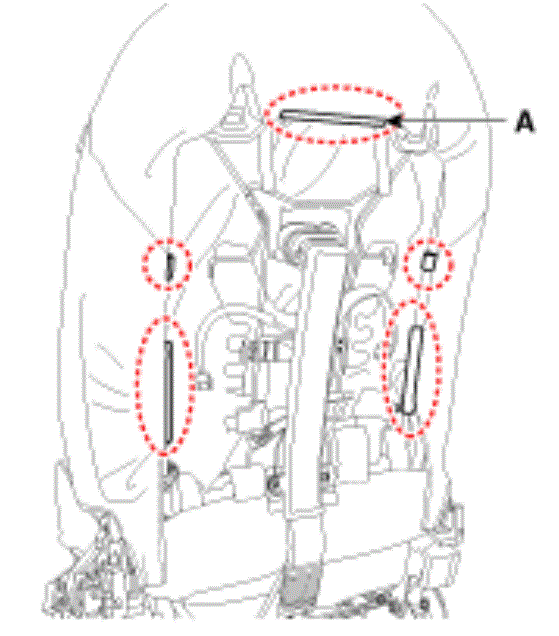

  11. Disconnect the protector (A) from the front seat back frame.
    G13046151Courtesy of KIA MOTORS AMERICA, INC.

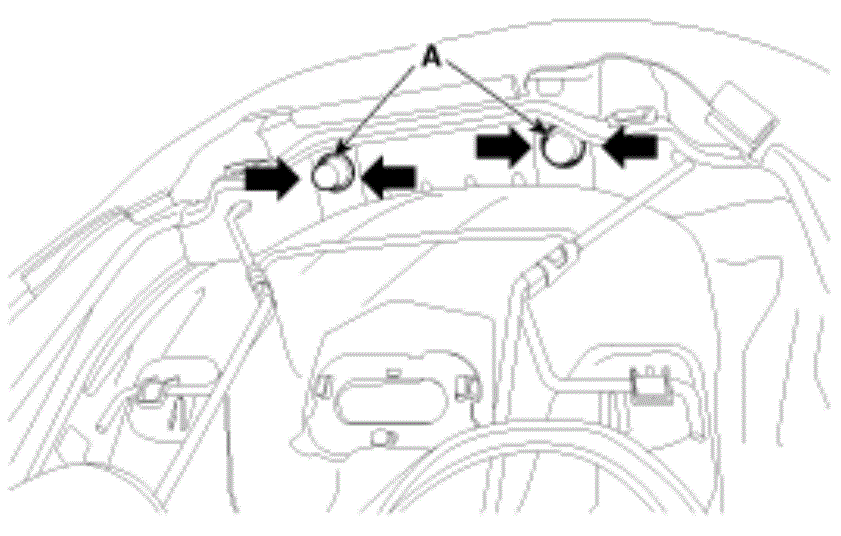

  12. Turn the front seat back cover inside out. Then pull out the headrest guides (A) while pinching both sides of the lower part of the guides.
    G13046152Courtesy of KIA MOTORS AMERICA, INC.

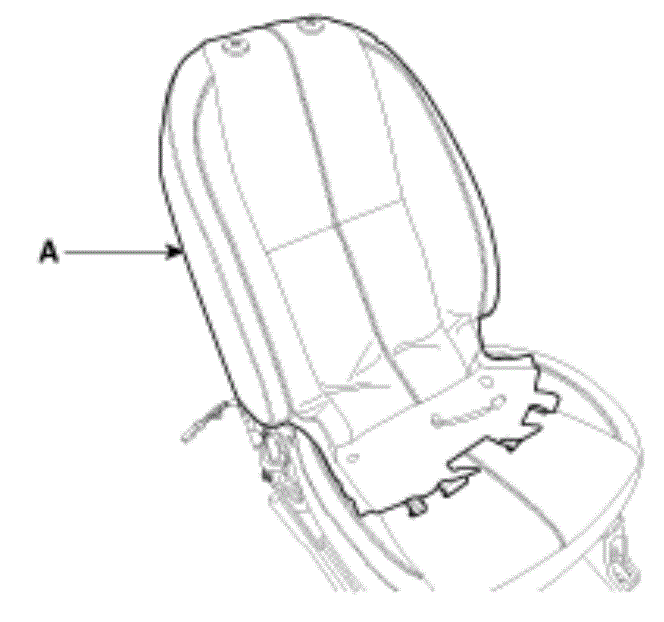

  13. Remove the front seat back cover (A) from the front seat back frame.
    G13046153Courtesy of KIA MOTORS AMERICA, INC.

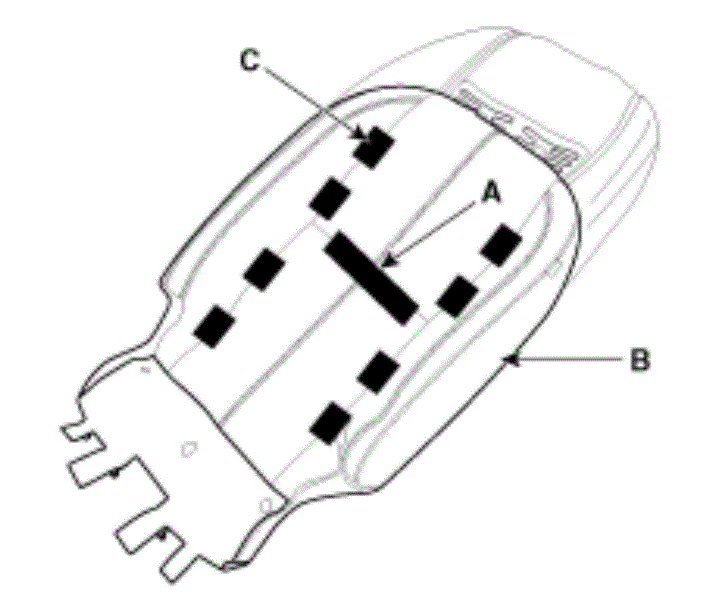

  14. After removing the Velcro tape (A) and hog-ring clips (C) on the front of seat back, remove the front seat back cover (B).
    G13046154Courtesy of KIA MOTORS AMERICA, INC.
  15. Install in the reverse order of removal.

    Information

    • Make sure that the connectors are plugged in properly.
    • Replace any damaged clips.

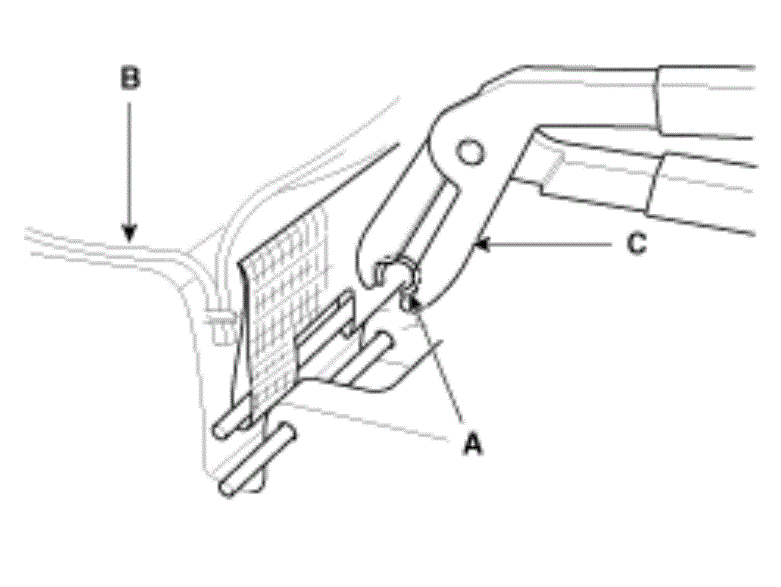

    • To prevent wrinkles, make sure that the material is stretched evenly over the cover (B) before securing the hog-ring clips (A).
    • Replace the hog-ring clips with new ones using special tool [09880-4F000].
G13046155Courtesy of KIA MOTORS AMERICA, INC.
