Schematic Diagrams
›
Circuit Diagram
›
Assist Power Window Switch
Assist Power Window Switch

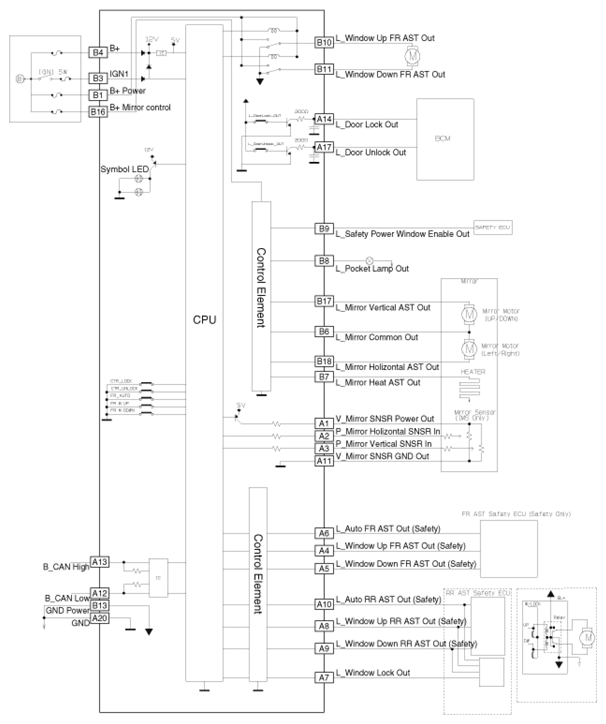

[Assist Power Window Module (ADM, IMS)]
Courtesy of KIA MOTORS AMERICA, INC.

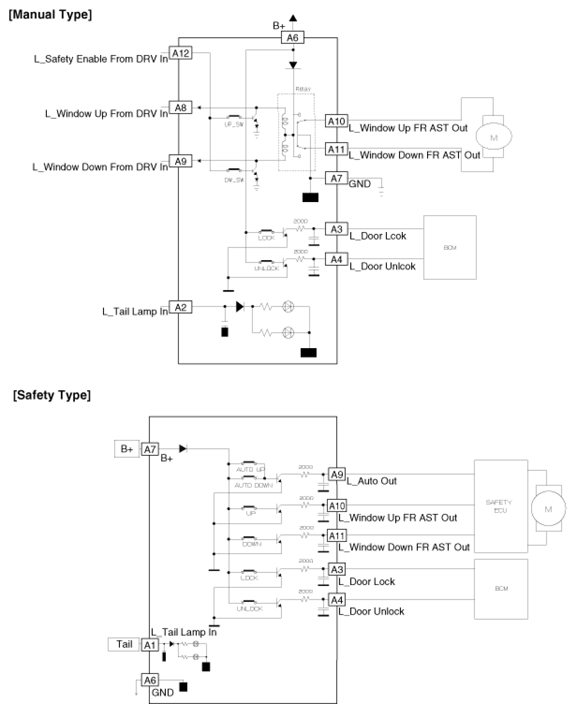

[Assist Power Window Switch (Non-IMS)]
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
