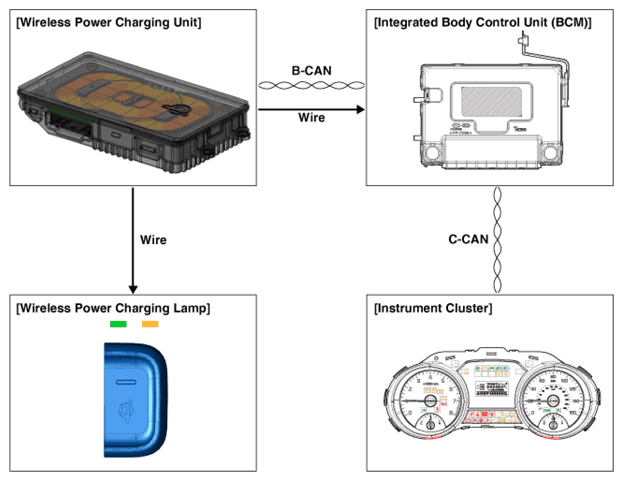

System Configuration Diagram

Courtesy of KIA MOTORS AMERICA, INC.

1. Instrument cluster: Alerts about contact with mobile phone.
2. Wireless charging lamp: Displays the charging status.
3. Integrated body control unit (BCM):
   1. Determines contact with mobile phone.
   2. Stops charging during the activation of LF.
