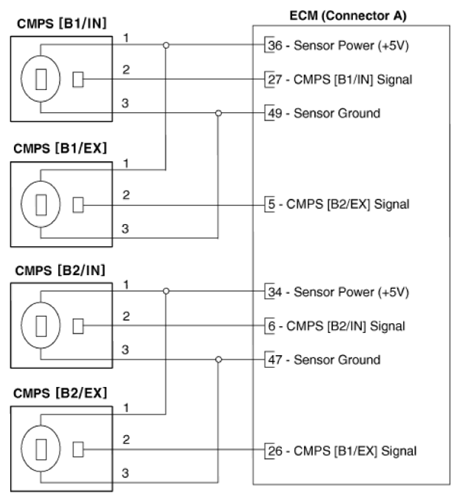

Home › Kia › 2021 › Sedona EX › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram › Notes
