Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

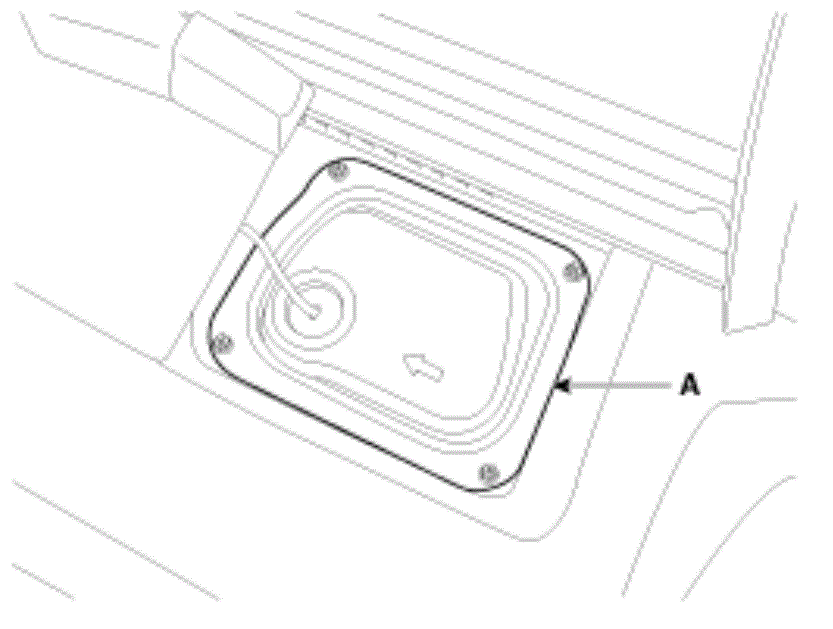

  2. Remove the service cover (A).
    G13044284Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the fuel tank pressure sensor connector (A).
  4. Remove the fuel tank pressure sensor (A) after releasing the hooks vertically.
    G13044285Courtesy of KIA MOTORS AMERICA, INC.
