Component Inspection: Notes

Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Condition	Connector	Terminal	Connector	Terminal	Reference

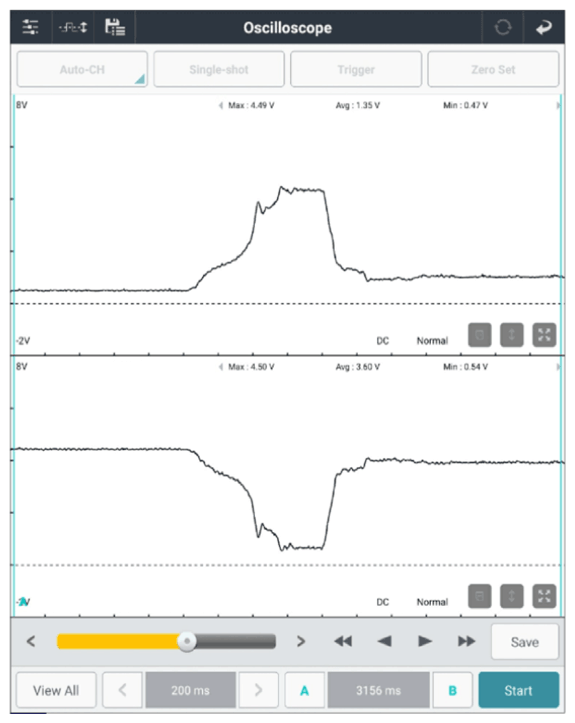

Ignition "ON", engine "ON".	TPS harness connector	6 (TPS.1 Signal)	Chassis ground	-	figures 1 below.
Ignition "ON", engine "ON".	TPS harness connector	4 (TPS.2 Signal)	Chassis ground	-	figures 1 below.

Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the Throttle Position Sensor (ETC Motor) and go to "VERIFICATION OF REPAIR " procedure.
