Electronic Stability Control (ESC) System
›
ESC Control Module
›
Components & Components Location
›
Components
Components & Components Location: Components

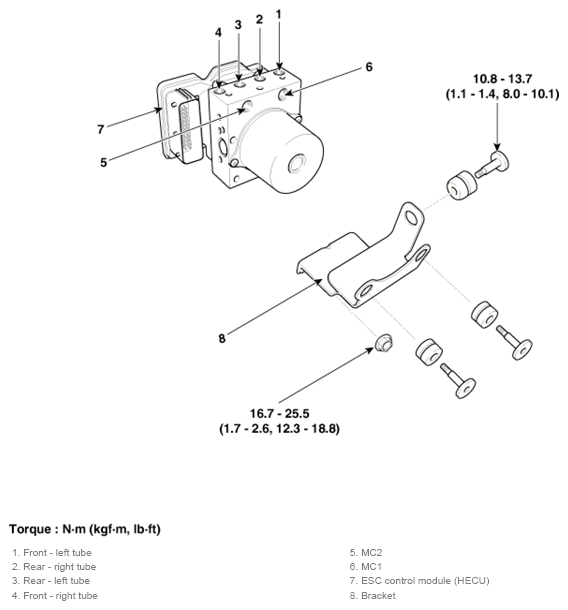

Fig 1: ESC Control Module Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
