Repair Procedures: Removal

  1. Remove the front wheel and tire.

    Tightening torque:

    107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

  2. Remove the front wheel speed sensor mounting bolt (A).

    Tightening torque:

    6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 7.6 lb.ft)

    G13045653Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the front wheel guard.

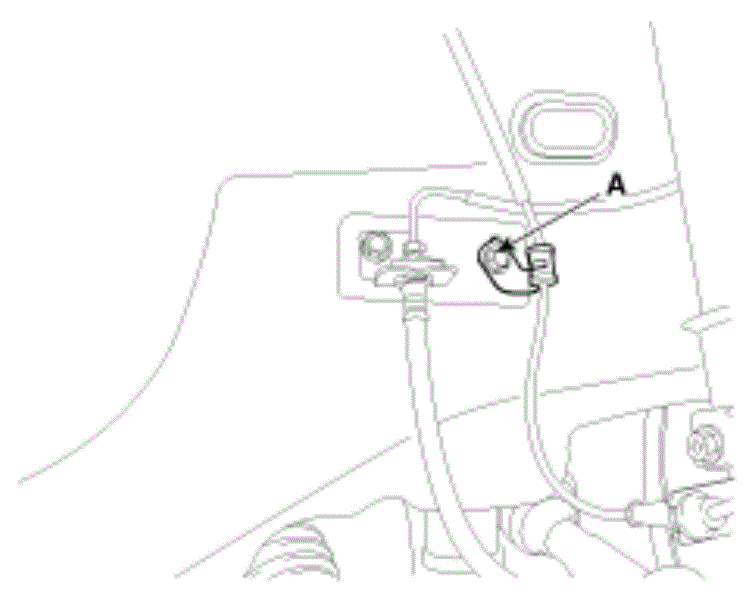

  4. Remove the front wheel speed sensor cable mounting bolt (A).
    G13045654Courtesy of KIA MOTORS AMERICA, INC.

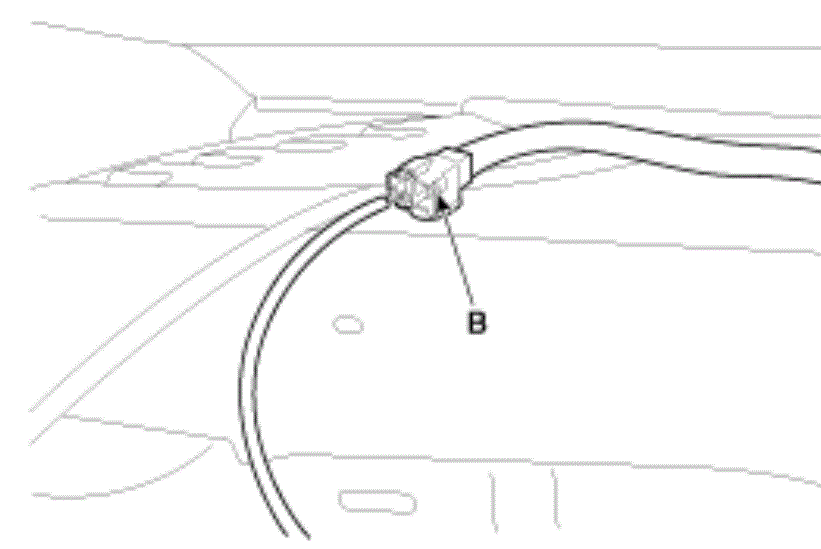

  5. Disconnect the front wheel speed sensor connector (B) and then remove the front wheel speed sensor.
    G13045655Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
