Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the cluster fascia panel.

    (Refer to Body - "CLUSTER FASCIA PANEL ")

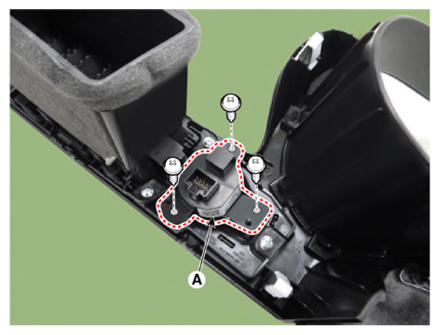

  3. Remove the start/stop button (A) by loosening the mounting screws.
G13486616Courtesy of KIA MOTORS AMERICA, INC.
