Repair Procedures: Inspection

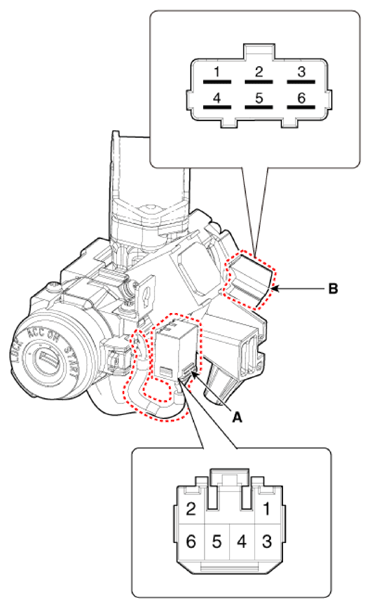

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.
    G13486704Courtesy of KIA MOTORS AMERICA, INC.

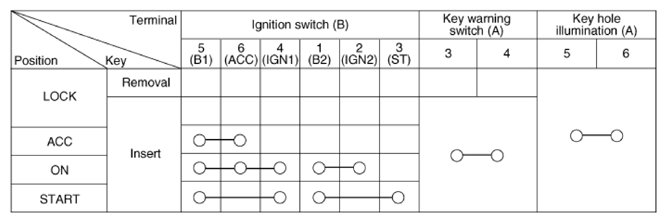

  2. Check for continuity between the terminals.
    G13486705Courtesy of KIA MOTORS AMERICA, INC.
