Repair Procedures: Removal

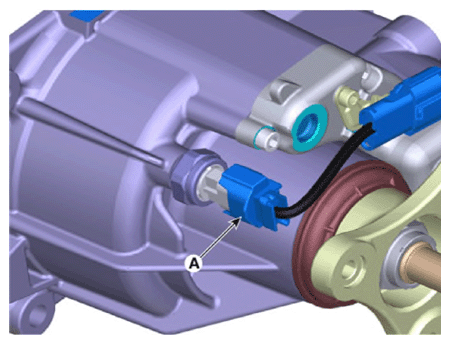

Disconnect the pressure sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

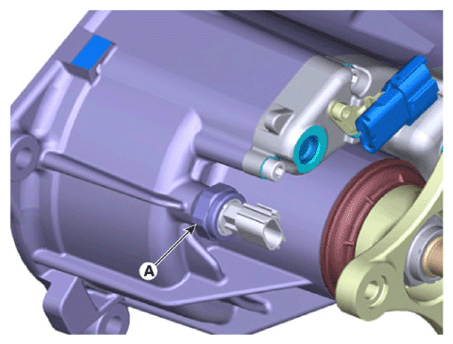

Remove the pressure sensor (A).
NOTE: Keep going horizontal state to prevent leaks during remove the pressure sensor.

Tightening torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
