Home › Kia › 2021 › Seltos EX › Repair and Diagnosis › Drivelines & Axles › Wheel Hubs › Front Axle Assembly › Front Hub - Axle › Components & Components Location › Components

Components & Components Location: Components

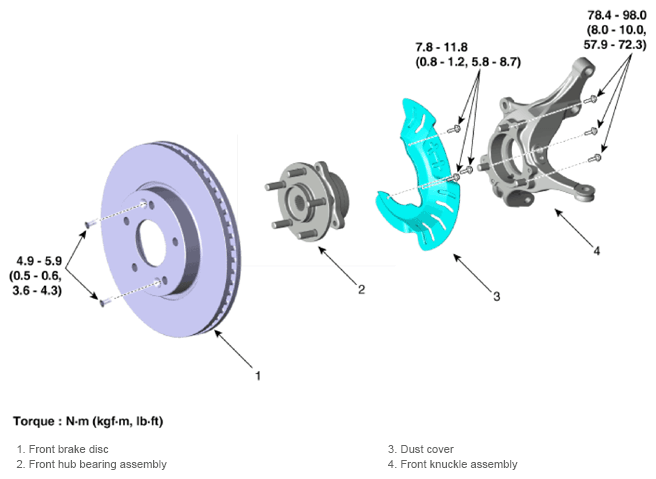

Fig 1: Front Hub - Axle Components Location With Torque Specification
G13481072Courtesy of KIA MOTORS AMERICA, INC.
