Repair Procedures: Disassembly

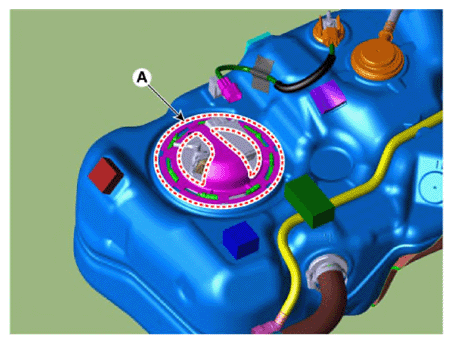

  1. Remove the fuel pump after removing the fuel pump plate cover (A) by using a SST (09310-B8100).
    G13483097Courtesy of KIA MOTORS AMERICA, INC.

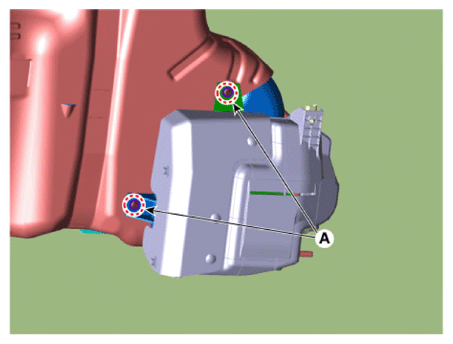

  2. Loosen the canister mounting bolts (A).
    G13483098Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the canister.

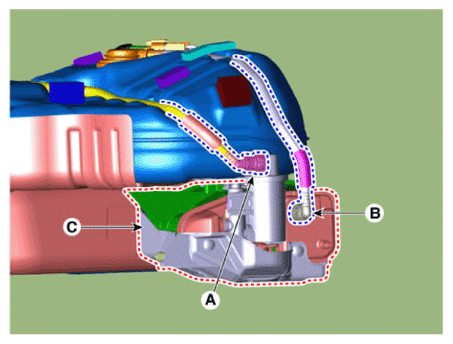

    1. Disconnect the ventilation hose quick-connector (A).
    2. Disconnect the vapor hose quick-connector (B).
    3. Remove the canister (C).
    G13483099Courtesy of KIA MOTORS AMERICA, INC.

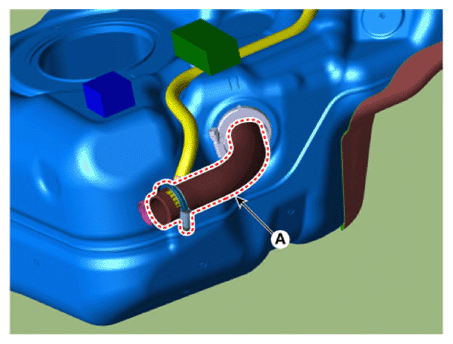

  4. Disconnect the fuel feed hose (A).
    G13483100Courtesy of KIA MOTORS AMERICA, INC.

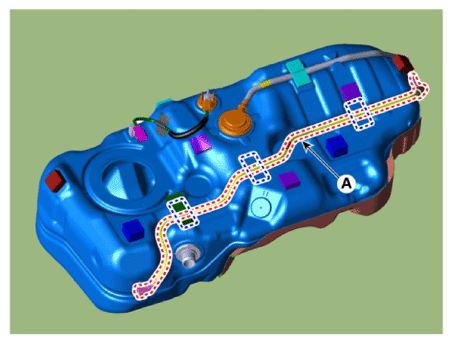

  5. Remove the ventilation hose (A).
    G13483101Courtesy of KIA MOTORS AMERICA, INC.

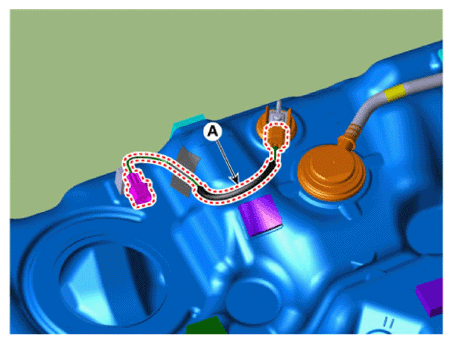

  6. Disconnect the fuel tank pressure sensor wiring (A).
    G13483102Courtesy of KIA MOTORS AMERICA, INC.

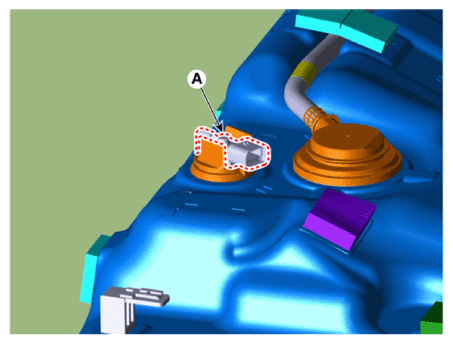

  7. Remove the fuel tank pressure sensor (A) by pulling it in the direction of vertical from fuel tank after releasing the fixing hook.
    G13483103Courtesy of KIA MOTORS AMERICA, INC.
