Components & Components Location: Components

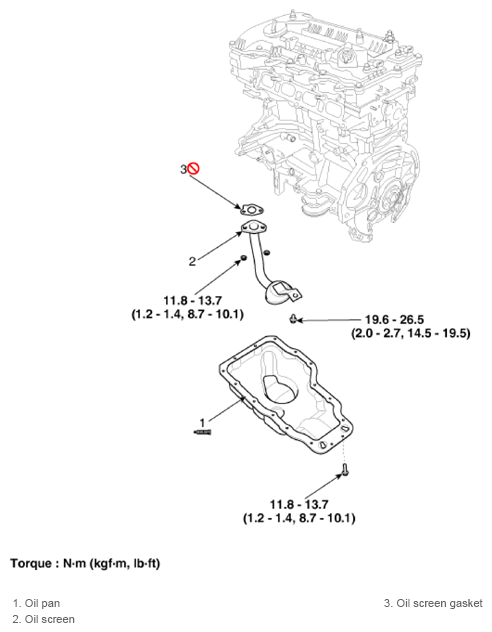

Fig 1: Oil Pan Components Location With Torque Specification
G13482789Courtesy of KIA MOTORS AMERICA, INC.
