Repair Procedures: Inspection: Exhaust

Disconnect the negative battery terminal.

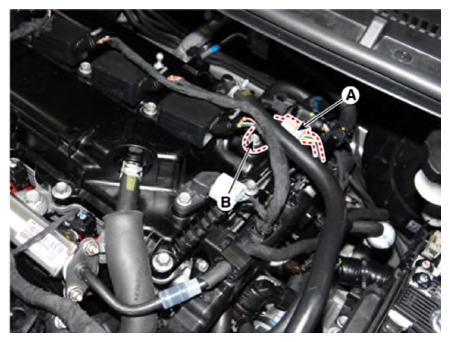

Disconnect the camshaft position sensor connector (A).
Remove the camshaft position sensor after loosening the mounting bolt (B).
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
