Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

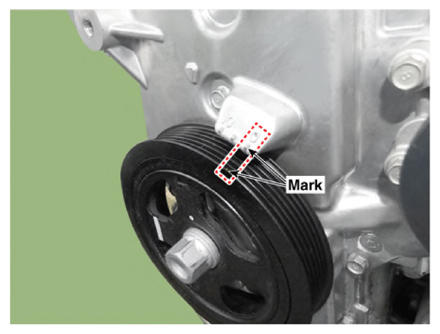

  1. Turn the crankshaft damper pulley clockwise, and align its groove with the timing mark of the timing chain cover.
    G13480394Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the timing chain cover & oil pump assembly.

    (Refer to Timing System - "TIMING CHAIN COVER & OIL PUMP ASSEMBLY ")

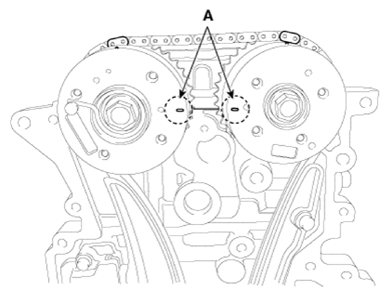

  3. Align the timing marks of the CVVT sprockets with the upper surface of the cylinder head to make No. 1 cylinder be positioned at TDC.
    G13480395Courtesy of KIA MOTORS AMERICA, INC.

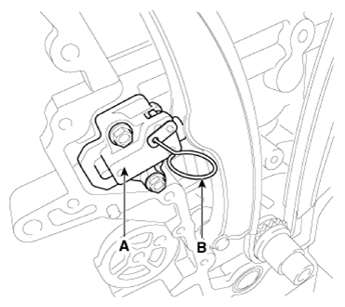

  4. Remove the hydraulic tensioner (A).
    G13480396Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: Before removing the tensioner, fix the piston of the tensioner with a pin through the hole (B) at compressed position.

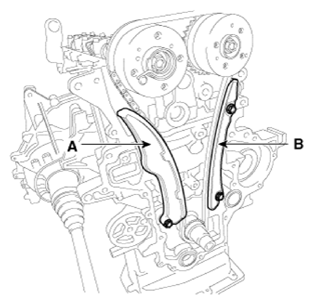

  5. Remove the timing chain tensioner arm (A) and guide (B).
    G13480397Courtesy of KIA MOTORS AMERICA, INC.

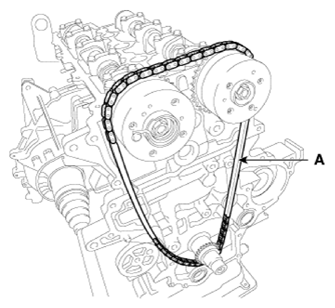

  6. Remove the timing chain (A).
G13480398Courtesy of KIA MOTORS AMERICA, INC.
