Components & Components Location: Components

WARNING: This page is about a different variant/trim than selected.

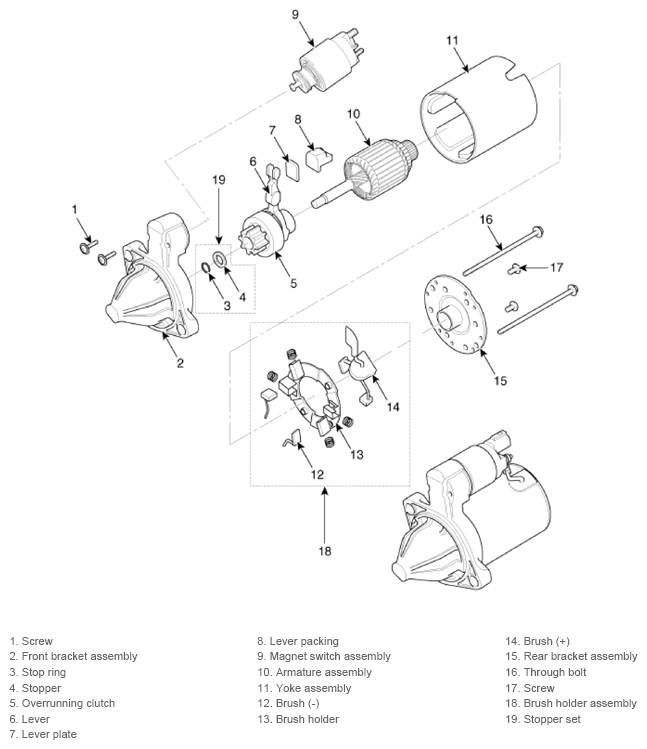

Fig 1: Engine Starter Assembly Exploded View
G13480489Courtesy of KIA MOTORS AMERICA, INC.
