Tailgate Antenna

  1. Disconnect the negative battery terminal.
  2. Remove the rear transverse trim.

    (Refer to Body - "REAR TRANSVERSE TRIM ")

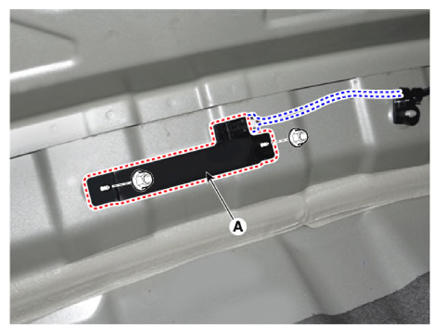

  3. Remove the tailgate antenna (A) by loosening the nuts after disconnecting the connector.
    G13482081Courtesy of KIA MOTORS AMERICA, INC.
